Description

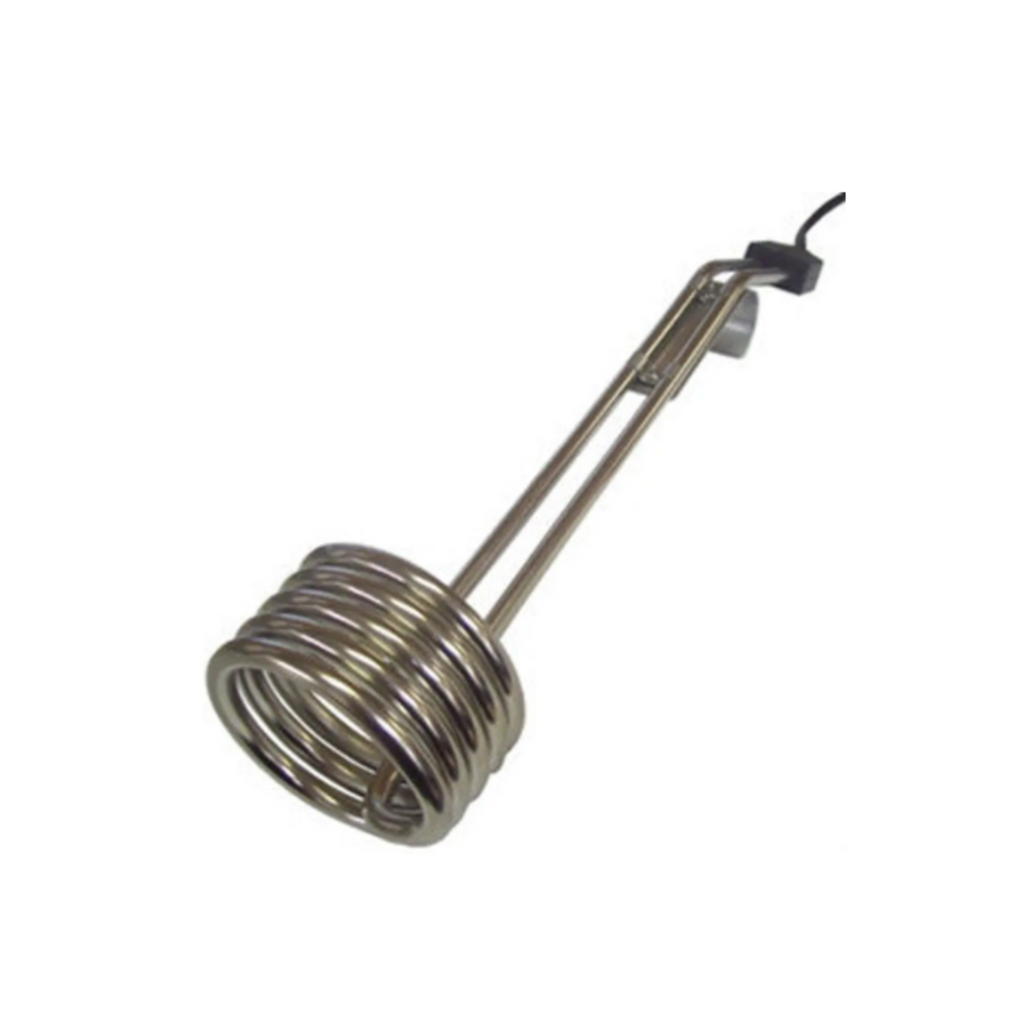

Hot water system portable heating element 2400W (000014587) suitable for a wide range of brands and models.
About this element
The heating element is the part that turns electricity into heat inside your hot water system. When it fails, the appliance may power up and the controls may work, but it never reaches temperature.
Common symptoms of a failed element
- Hot water system takes far longer than usual to heat, or does not heat at all
- A visible blister, split or burnt patch on the element
- The safety switch or RCD trips when the heat cycle starts
Specifications and fitment
| Part number | 000014587 |
|---|---|
| Brand | Universal / unbranded |
| Part type | Aftermarket replacement part |
| Appliance | Hot Water System |
| Category | Element |
| Specification | 48cm |
Additional details
Stainless steel body and element. Diameter of coil is approx 8cm.
The element stands approx 42cm high (excluding rubber connection piece) with 1.8m flexible electric cord 3 pin plug. Metal hook enables this element to be hung/mounted over the side.
Suitable for boiling or heating water. Can be used outdoors for camping and commonly used in carpet cleaning operations. To be used in fresh, clean water only.
Industrial use only – Not suitable for household applications. Customer responsible for correct installation and usage.
Warning – for personal safety this element is NOT to be used in baths, swimming pools, spas etc.
WARNING: Do not put your hand into the water whilst the element is plugged in to a power point.
Recommend to use with an RCD safety switch such as our Plug in RCD Safety Switch with Socket. Available here.
240v 50Hz but can be used in 230v applications.
Note- this element is tested for use in fresh, clean water only. If it is used in any other type of liquid or in salt water the warranty will be void.
Installation notes
Isolate power at the wall before removing the old element. Check the wattage and mounting pattern match the original, and transfer any brackets or terminals across. Check the part number printed on the part you are replacing against the numbers listed here; where it differs, compare your model number instead.
Frequently asked questions
What if I am not sure this is the right part?
Compare the part number on your old part with the numbers listed above. If they differ, check your model number against the model list.
