Description
17471100000346 Arc, Baumatic, Euro, Elfa Oven 5 Function Selector Switch

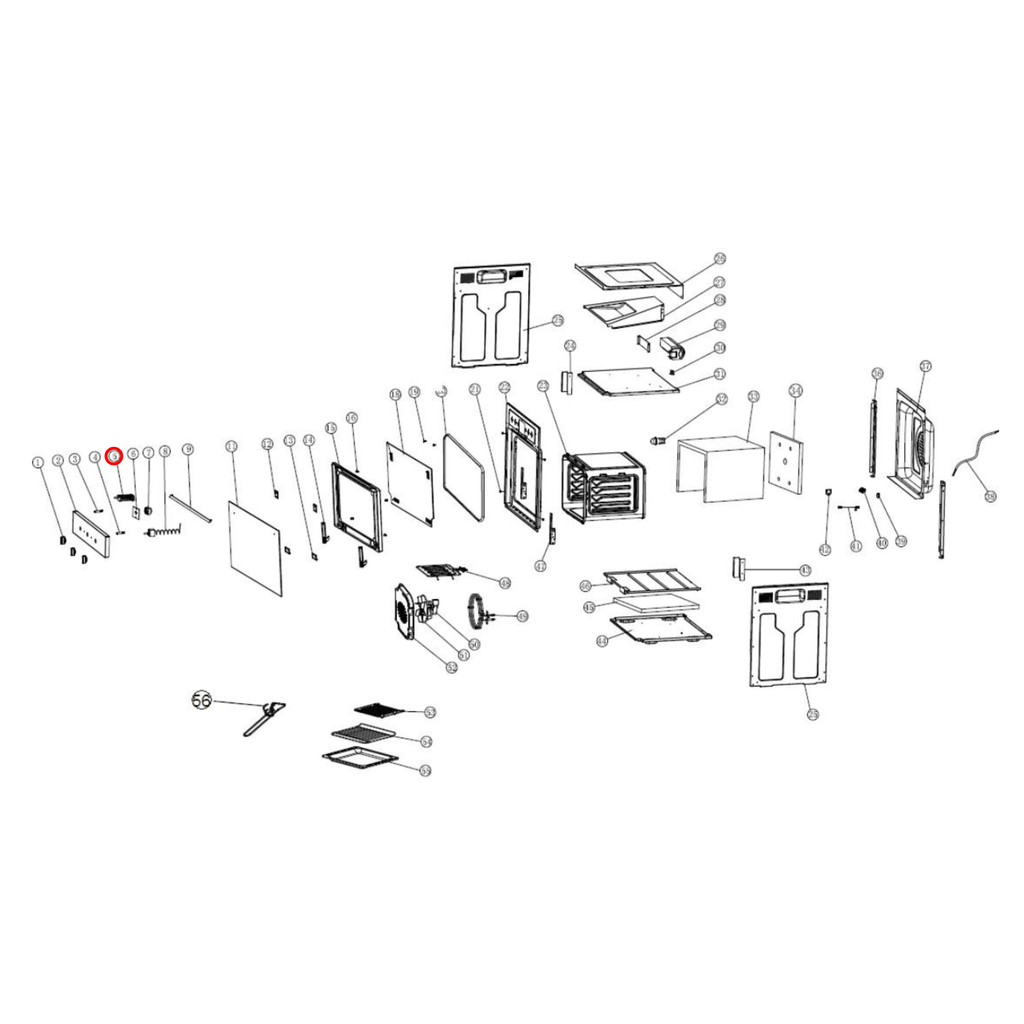

17471100000346 is number 5 on the diagram. The diagram is from model PO6FS.
This part is also known as the following part numbers: SE251, FD103M, 33301001, ED300876, EU302, E46019, 1906774, EAFS236

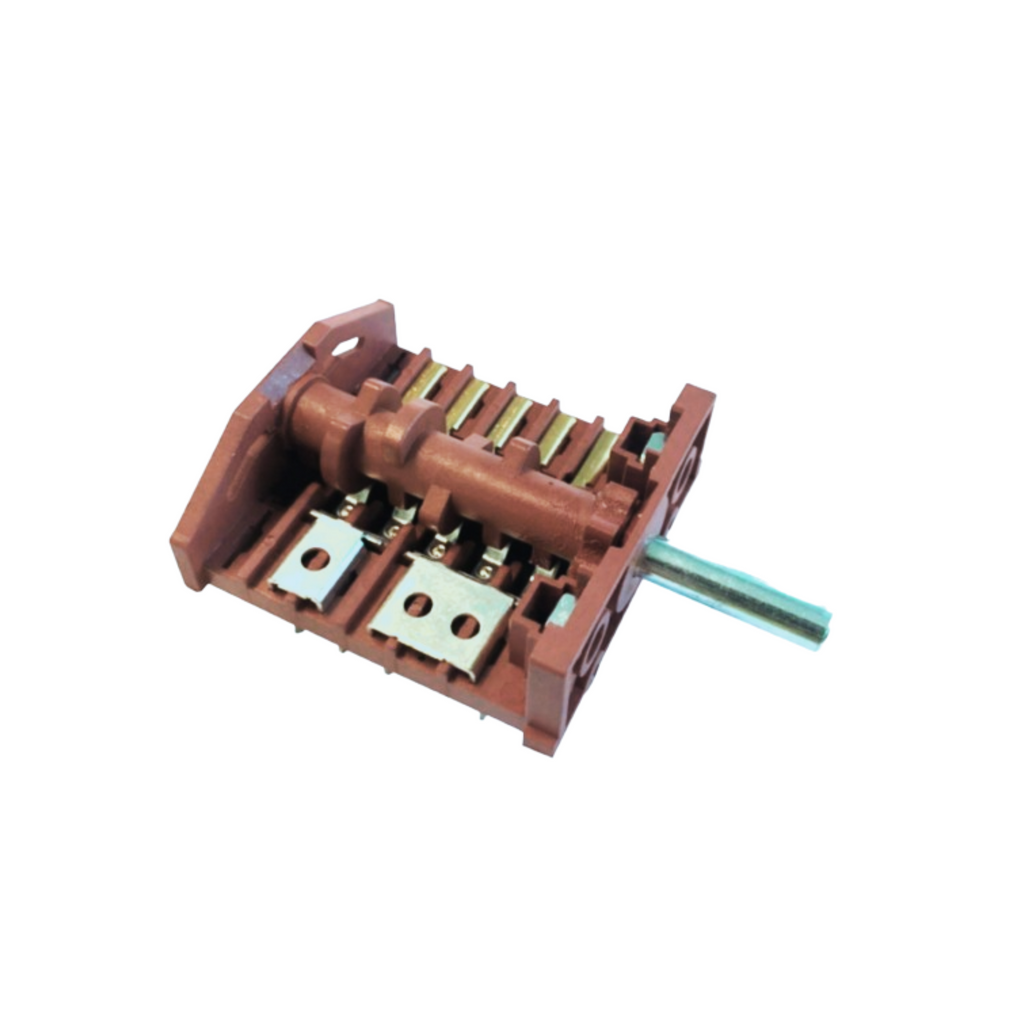

Specifications: 6mm D-Shaped shaft, 5 cam banks, 5 SPST switches in two groups. The front 3 banks are linked. Same with the last 2 banks.
The switch may also be supplied as per the black switch in the photos with 3053/3 stamped on it.
Models this part suits:
EP6004SX, EP6004WH, PR600SX, EBC46S, EBC46WH, EV604SX, EV6004WH, PR604SX, EP600BSS, DAO65S, B600MC, BLFF52, BLFF52A, AOS6SE1, and possibly more.
Give us a call on 0863907132 if you are not sure about this part.
