Description

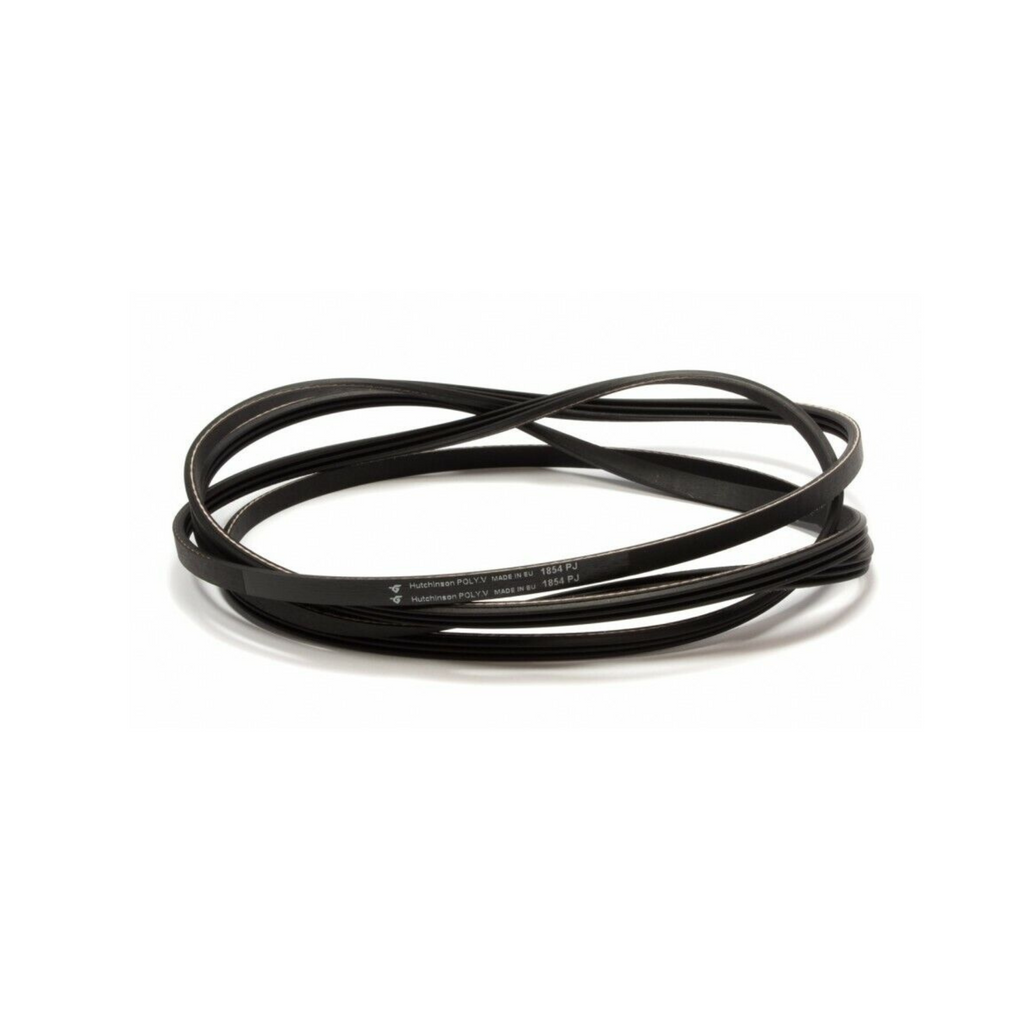

This is the genuine Fisher & Paykel drive belt 1850MM for Fisher & Paykel & Hoover dryers, listed under part number 410010. Earlier and alternative numbers for this part: 0198300009. Genuine parts carry the manufacturer's own specification, so the fit and performance match the part that came out.
About this drive belt
The drive belt links the motor to the drum or pulley. Belts stretch, glaze and crack with age until they slip or snap.
Common symptoms of a failed drive belt
- The motor runs but the drum does not turn
- A squeal on start-up or a burning rubber smell
- Visible cracks, fraying or a belt that has come off
Specifications and fitment
| Part number | 410010 |
|---|---|
| Alternative numbers | 0198300009 |
| Supersedes | 0198300009 |
| Brand | Fisher & Paykel & Hoover |
| Part type | Genuine manufacturer part |
| Appliance | Dryer |
| Category | Drive Belt |

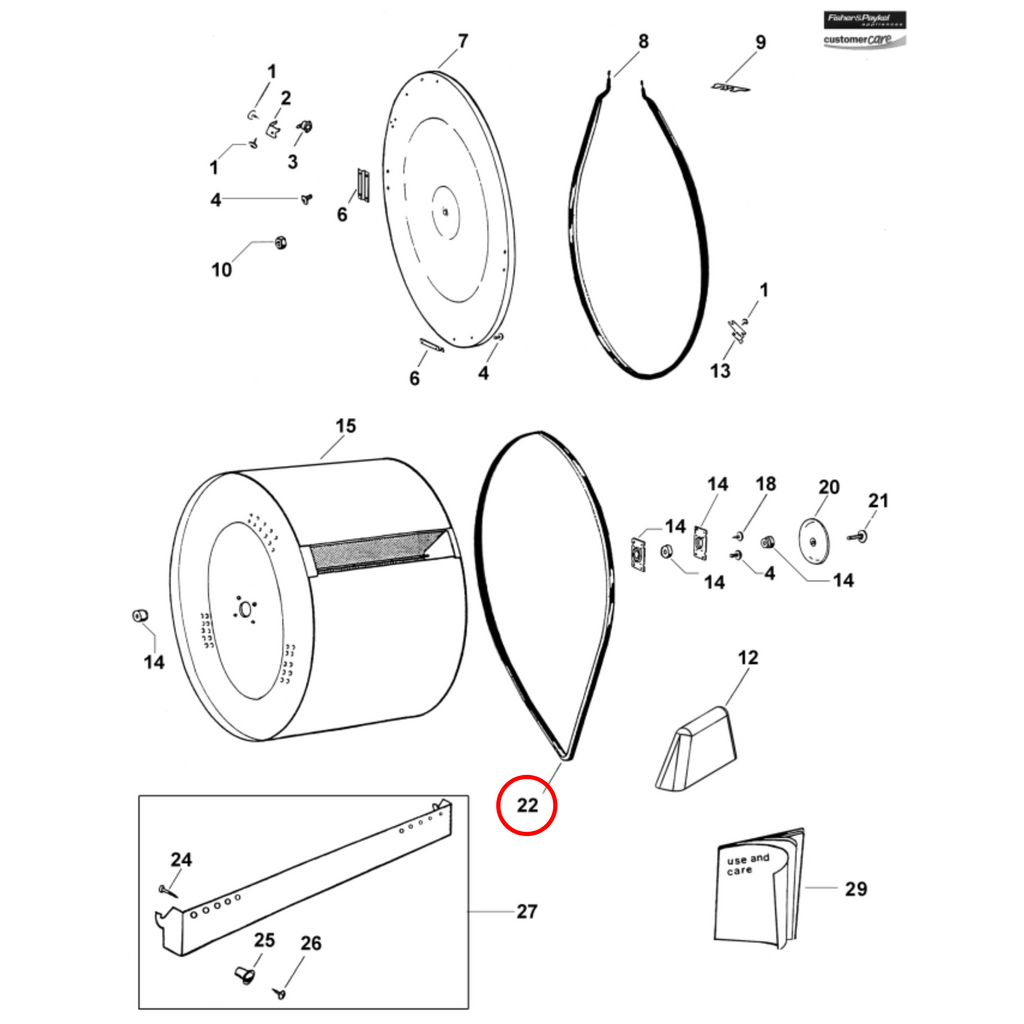

| Parts diagram reference | Item 22 (model DE40F56A2 (93188-A)) |
Suitable for
This drive belt 1850MM is listed for the following Fisher & Paykel & Hoover models and other models in the same range:
K352DB*01, D6776, D6786, D6788, D6790, D6792, D6794, D6808, D6940, DF002, DF004, DF006, DF008, DF010, DF012, DF014, DF016, 5015D, 5020D, 3525DB*01, 3530DB*01, 5030DB*01, K503DB*01, 5040EDB*01, 5050EDB*01, K505EDB*01, D6174, D6176, D6178, DE35F56AW1, DE40F56A2
Before you order
Belt sizes are precise. Match the length and the rib count exactly; a near-size belt will slip or overload the motor. Check the part number printed on the part you are replacing against the numbers listed here; where it differs, compare your model number instead. A parts diagram showing the item position is included with the product images.
Frequently asked questions
Is 410010 a genuine Fisher & Paykel part?
Yes. This is the manufacturer's own part, not an aftermarket copy.
Which models does this drive belt 1850MM fit?
It fits K352DB*01, D6776, D6786 and 28 other models listed above. Always confirm your model number first.
What part numbers does 410010 replace?
410010 can be used in place of 0198300009.
Do I need a technician to fit this part?
Many parts can be fitted by a competent DIYer with the power disconnected. Gas, refrigeration and sealed-system work must be done by a licensed tradesperson.
