Description

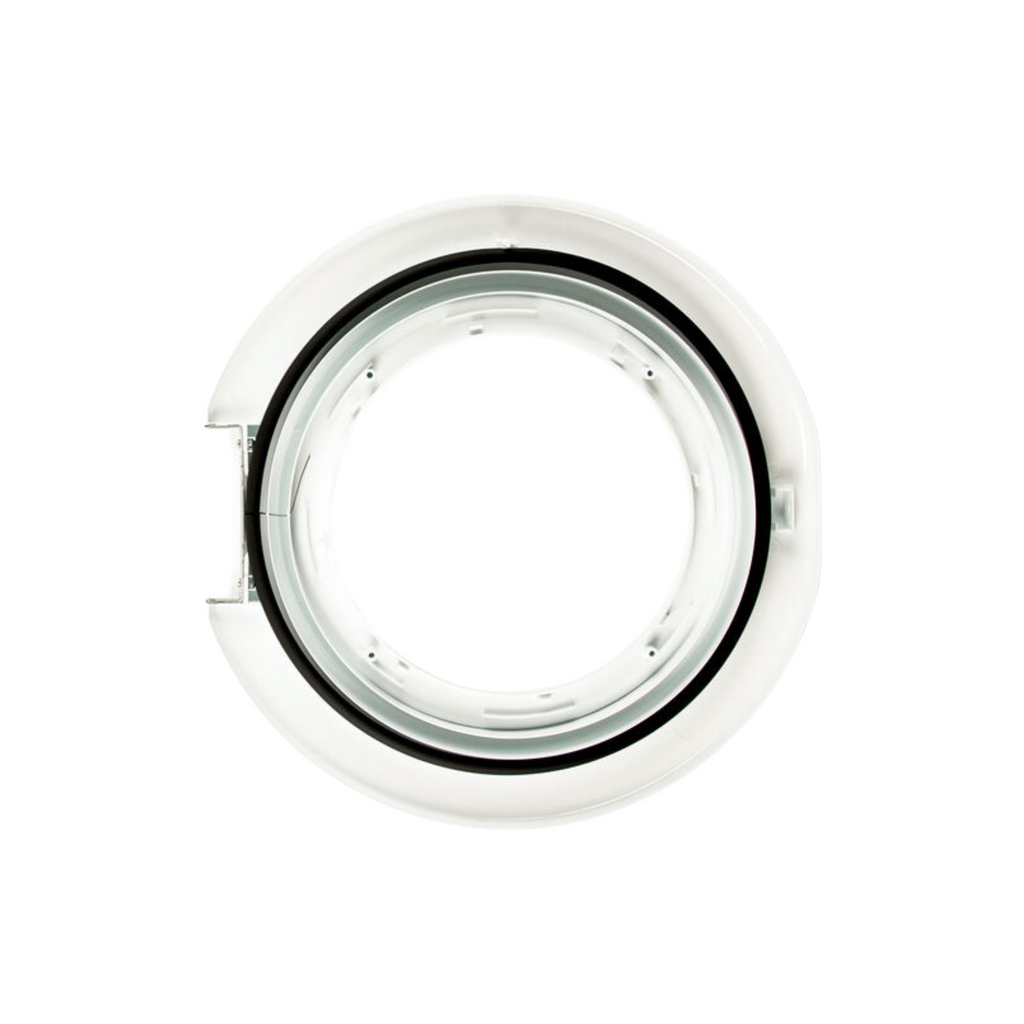

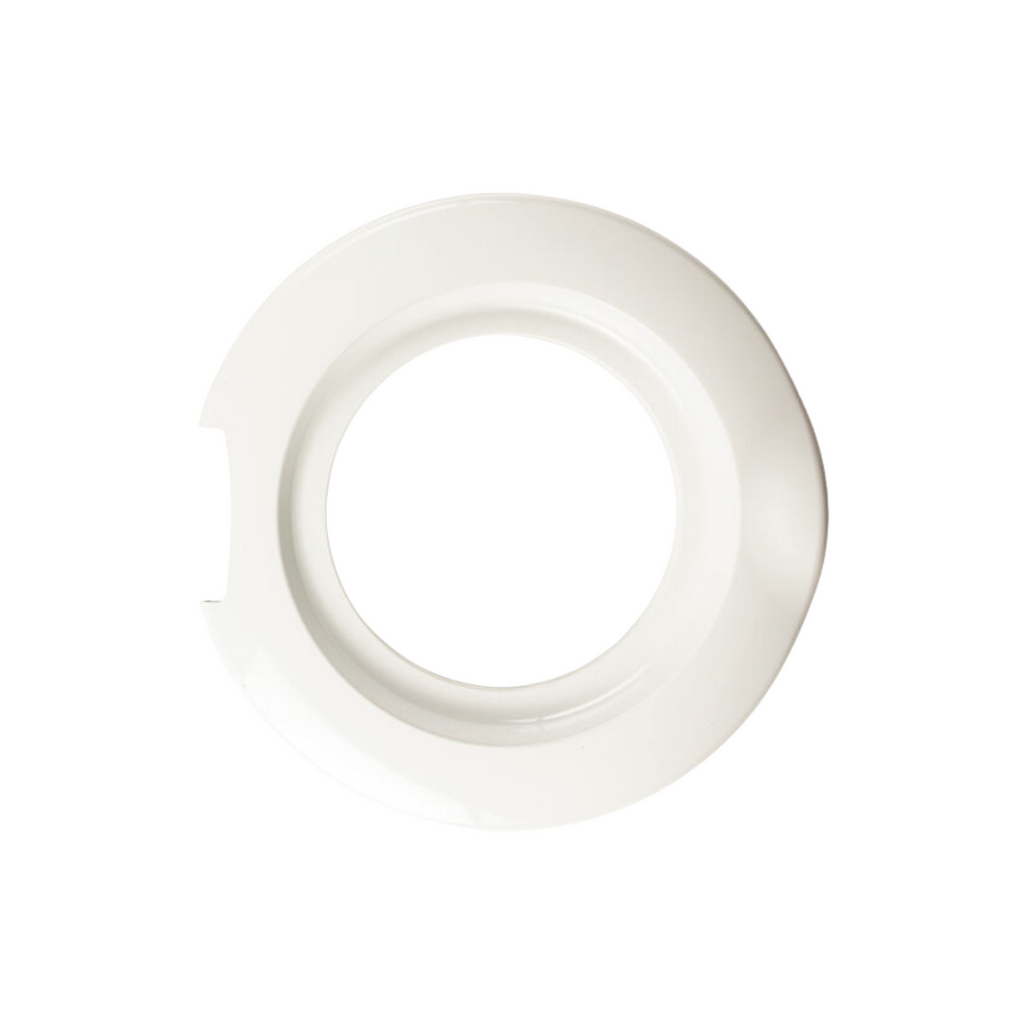

Genuine Fisher & Paykel door front frame sub assembly, part number 427420P, supplied for Fisher & Paykel dryers. It supersedes or cross-references 427078. As a manufacturer-supplied part it fits exactly as the original did, with no modification.
How this part works
The door rim or door trim finishes the edge of the door and holds the seal or glass on the dryer.
Signs it needs replacing
- A cracked or loose rim
- A seal that will not stay in place
Key details
| Part number | 427420P |
|---|---|
| Alternative numbers | 427078 |
| Supersedes | 427078 |
| Brand | Fisher & Paykel |
| Part type | Genuine manufacturer part |
| Appliance | Dryer |
| Category | Door Rim |

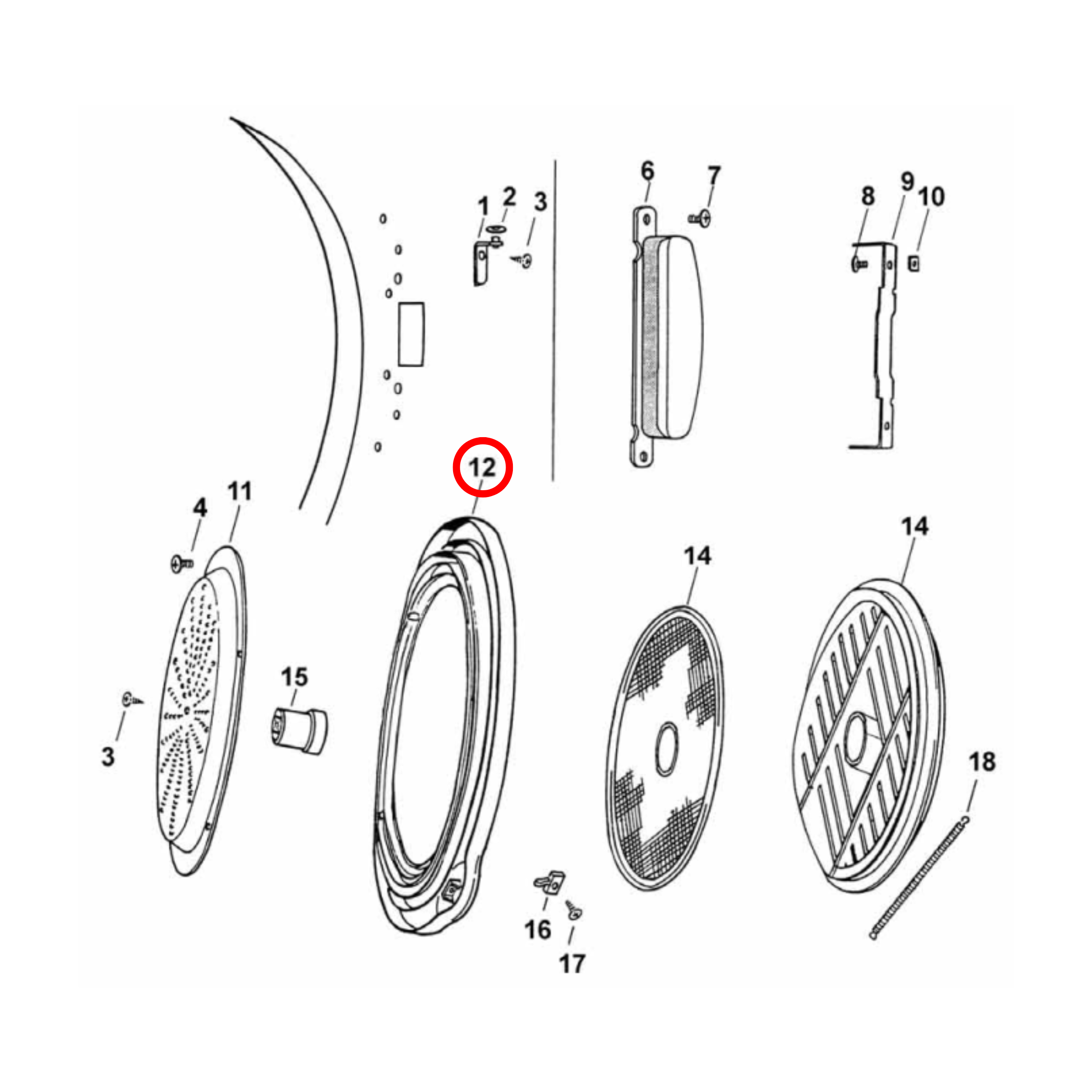

| Parts diagram reference | Item 12 (model DE35F56AW (93101-A)) |
Additional details
This part does not include the middle outlet grille.
NOTE: If wanting a door for an older model (typically over 10 years old) that has the door switch mounted under the hinge cover, the door switch kit will be needed and must be fitted by a qualified installer. See part no 427919 for door switch kit. Also when fitting the door to the older model dryer the breakaway plunger located on the inside top middle of the door will need to be removed.
Hint: Newer dryers have a small cut out in cabinet where the door closes. It is located in the top middle and corresponds to the plunger on the door. If your dryer does not have this cut out it is an older model.
This part suits many front venting dryers including:
ED50, ED52, ED53, ED54, AD35, AD35A, AD36, AD37, AD39, AD39 (93213-A), AD55, DE35F56AW1 (93007), DE40F56A2 (93188-A) and other models in the same range.
Installation notes
Check the colour and the model list. Match the part number on your old part, or the model number on your appliance's rating plate, to the details above before ordering. A parts diagram showing the item position is included with the product images.
Frequently asked questions
Is 427420P a genuine Fisher & Paykel part?
Yes. This is the manufacturer's own part, not an aftermarket copy.
What part numbers does 427420P replace?
427420P can be used in place of 427078.
How do I find my appliance model number?
Look for the rating plate or sticker on the dryer. It is usually inside the door, on the door frame, on the back panel or under the lid.
