Description

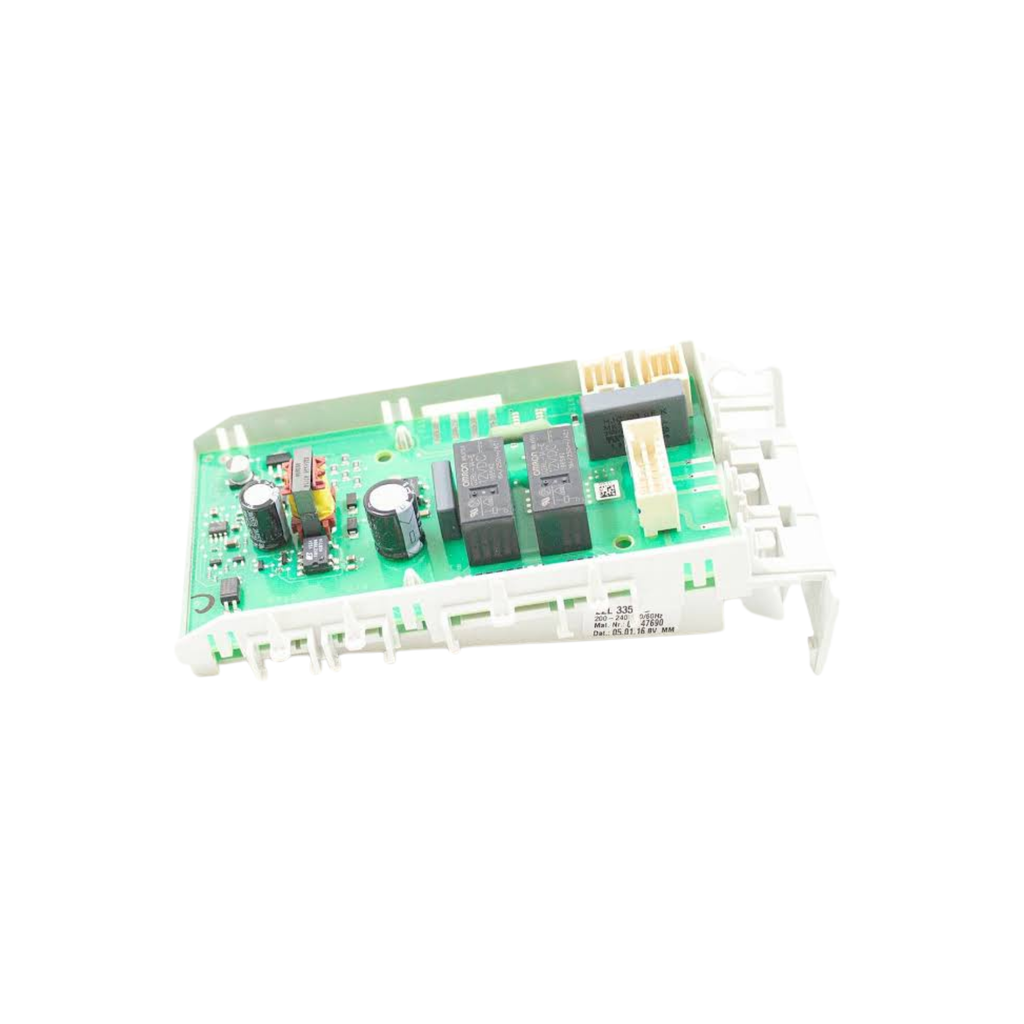

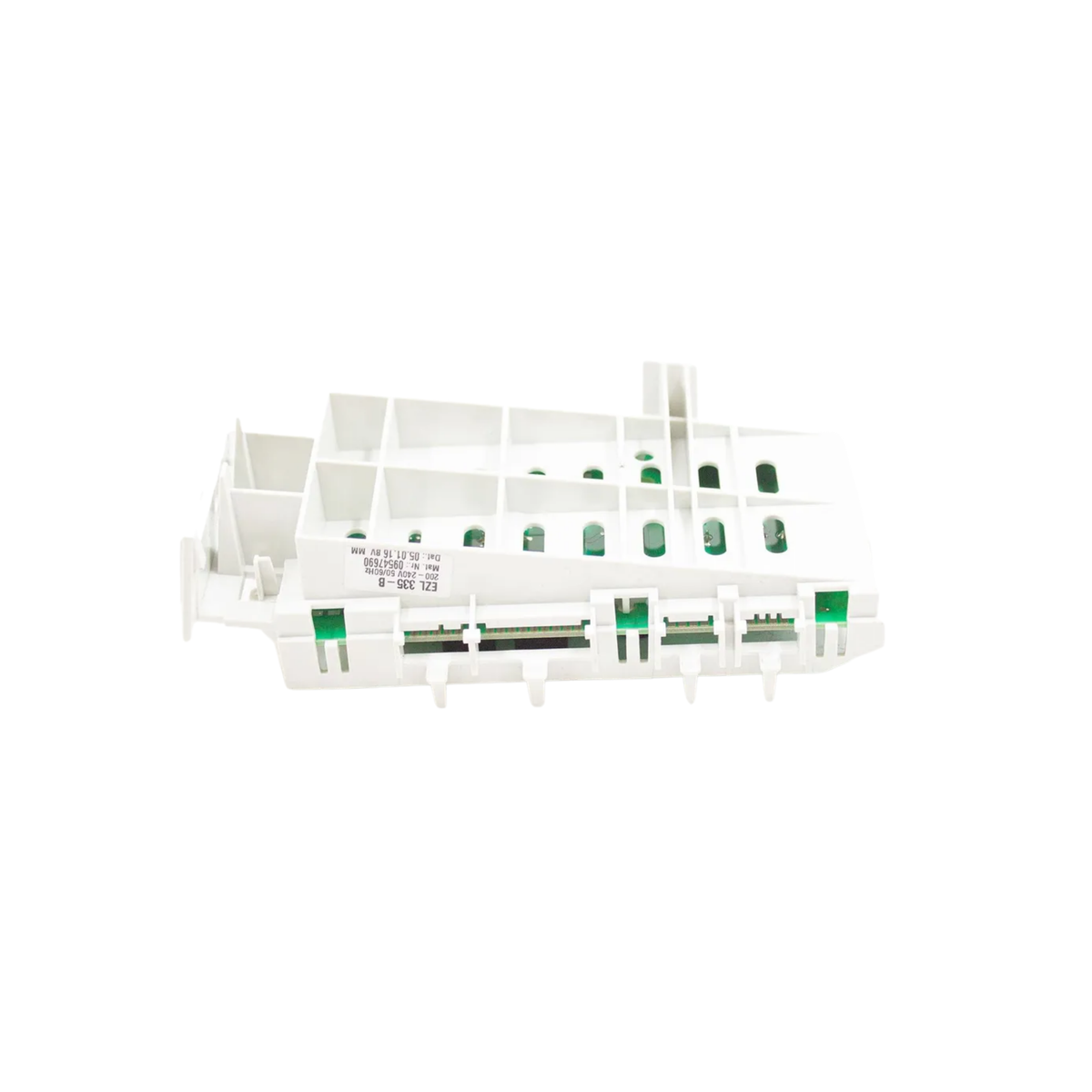

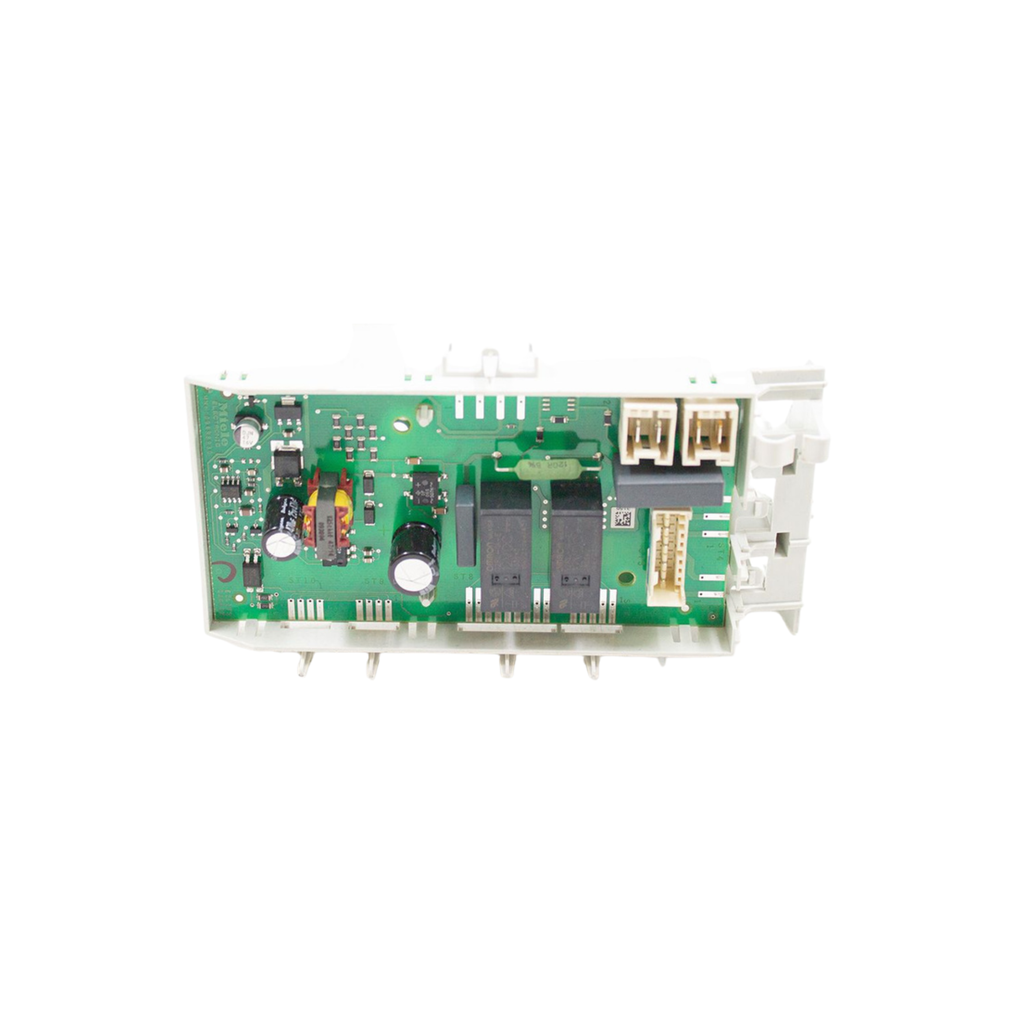

Original Miele replacement electronic PCB control unit (9547690) for Miele dryers. The same part is also catalogued as 7848202. Genuine parts carry the manufacturer's own specification, so the fit and performance match the part that came out.
How this part works
The PCB (printed circuit board) is the control brain of the dryer. It reads the sensors, runs the program and switches the motor, heater, valves and pump on and off.
When to replace it
- No power, no lights or a display that stays blank
- Error codes that return after a reset
- A cycle that stops part way through, or functions that will not switch on
Specifications and fitment
| Part number | 9547690 |
|---|---|
| Alternative numbers | 7848202 |
| Supersedes | 7848202 |
| Brand | Miele |
| Part type | Genuine manufacturer part |
| Appliance | Dryer |
| Category | PCB |

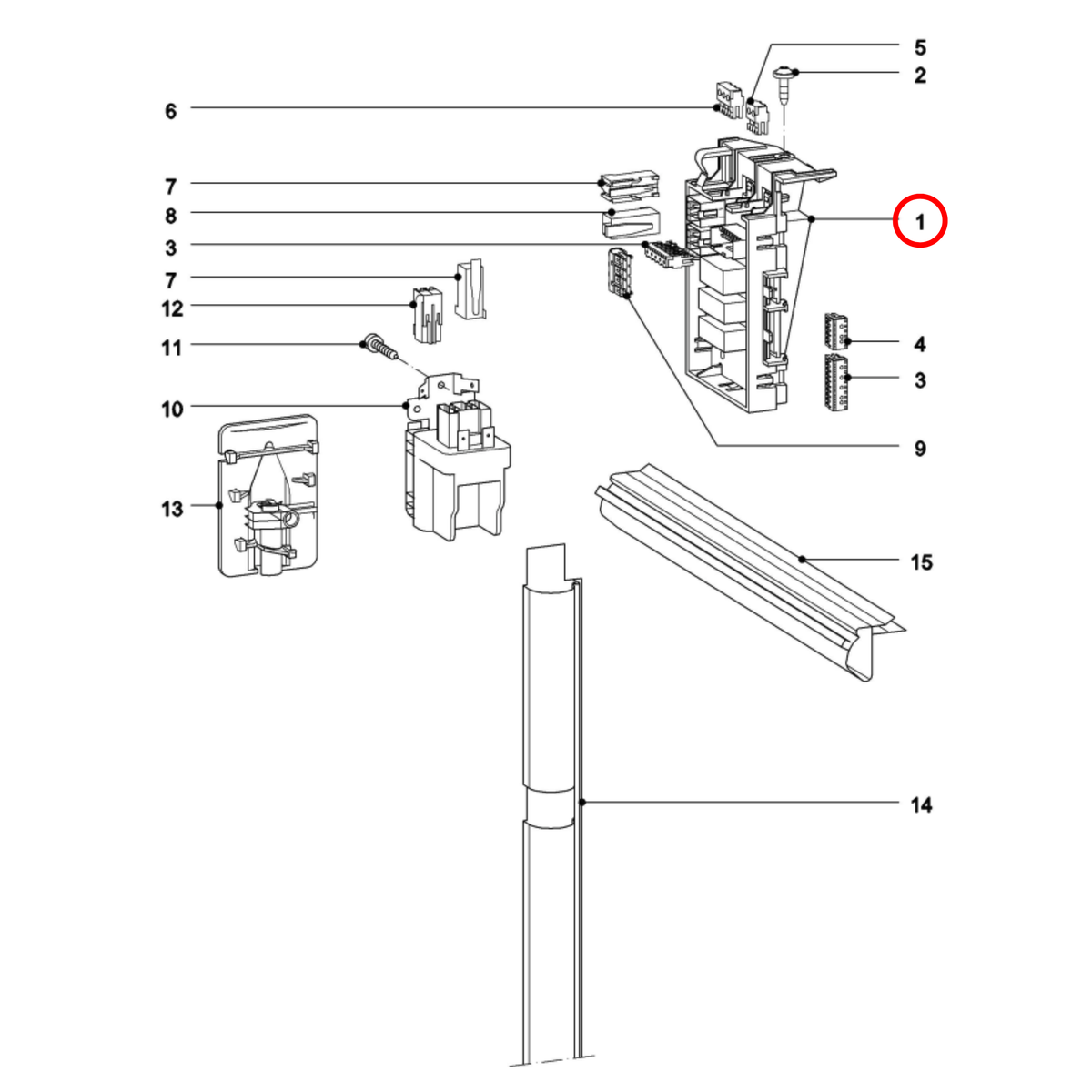

| Parts diagram reference | Item 1 (model T7952WP) |
Suitable for
This electronic PCB control unit is listed for the following Miele models and other models in the same range:
T7952WP, T8861
Installation notes
Disconnect power and note where every plug goes before removing the old board. Many boards are supplied unprogrammed or need settings transferred, so check the notes below. Match the part number on your old part, or the model number on your appliance's rating plate, to the details above before ordering. A parts diagram showing the item position is included with the product images.
Frequently asked questions
Is 9547690 a genuine Miele part?
Yes. This is the manufacturer's own part, not an aftermarket copy.
Which models does this electronic PCB control unit fit?
It fits T7952WP, T8861. Always confirm your model number first.
What part numbers does 9547690 replace?
9547690 can be used in place of 7848202.
Do I need a technician to fit this part?
Many parts can be fitted by a competent DIYer with the power disconnected. Gas, refrigeration and sealed-system work must be done by a licensed tradesperson.
