Description

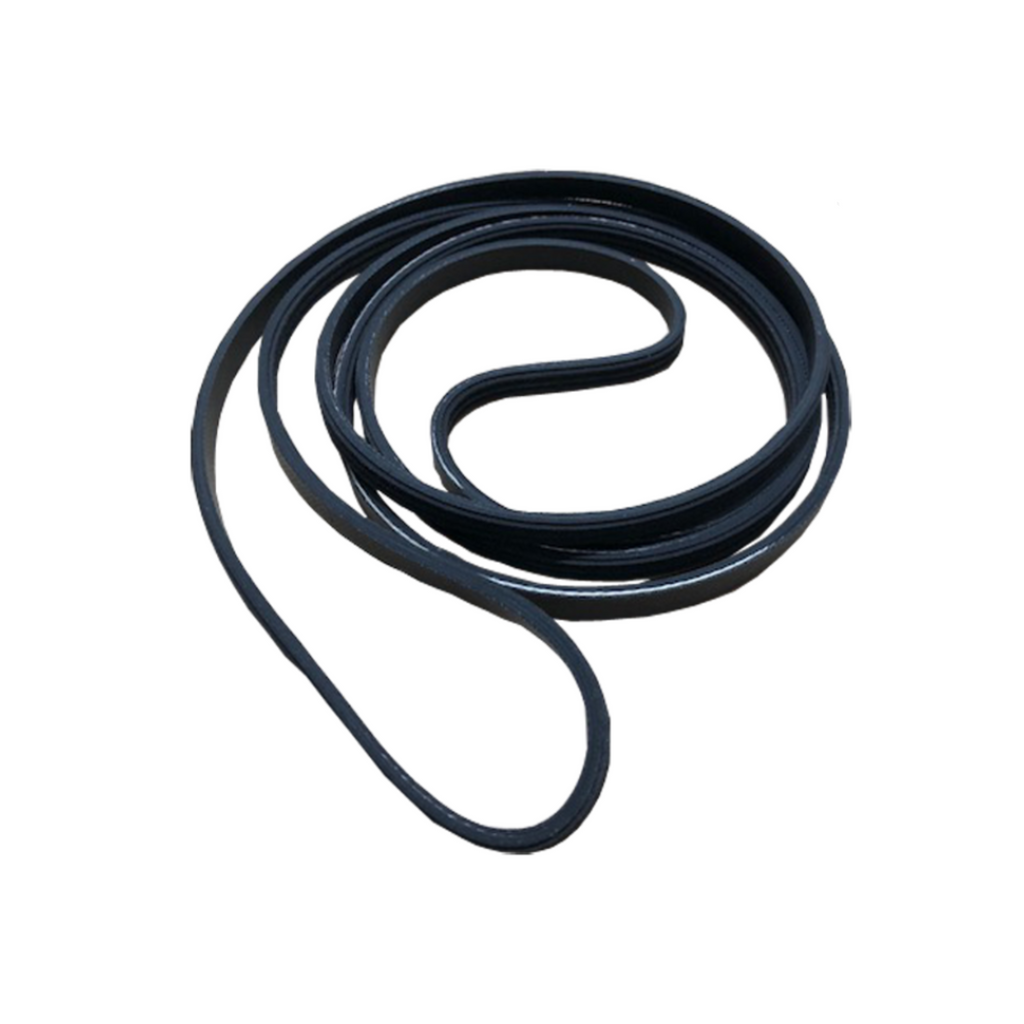

Genuine Simpson minimax drive belt 770J3, part number 4055576997, supplied for Simpson dryers. Earlier and alternative numbers for this part: 0198001021, B018. As a manufacturer-supplied part it fits exactly as the original did, with no modification.
How this part works
The drive belt links the motor to the drum or pulley. Belts stretch, glaze and crack with age until they slip or snap.
When to replace it
- The motor runs but the drum does not turn
- A squeal on start-up or a burning rubber smell
- Visible cracks, fraying or a belt that has come off
Part details
| Part number | 4055576997 |
|---|---|
| Alternative numbers | 0198001021, B018 |
| Supersedes | 0198001021 |
| Brand | Simpson |
| Part type | Genuine manufacturer part |
| Appliance | Dryer |
| Category | Drive Belt |

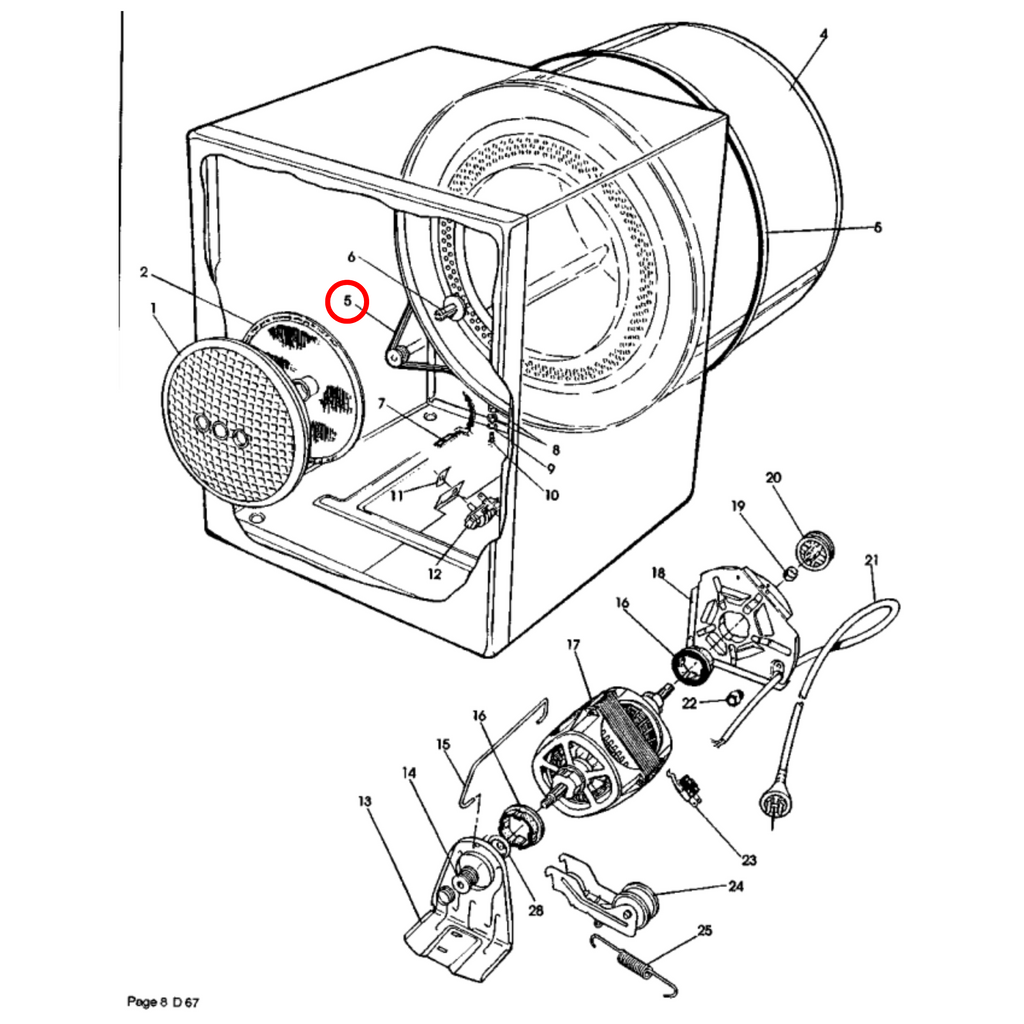

| Parts diagram reference | Item 5 (model 39B450P) |
Compatible Simpson models
Use this part on these Simpson dryers:
39B450P-000, 39B450P*01, 39B450P*02, 39B450P-100, 39B450P*11, 39B450P-110, 39B450P*13, 39B455S-000, 39B455S*01, 39B455S*02, 39B455S-100, 39B455S*11, 39B455S-110, 39B455S*12, 39B455S*13, 39D361P*01, 39D361P*02, 39D361P*13, 39D362P*13, 39D452P*13, 39D456S*01, 39D456S*02, 39D456S*12, 39D456S*13, 39D457S*12, 39D457S*13, 39P350J*01, 39P350J*02, 39P350K*01, 39P350K*02, 39P350K*03, 39P350L*00, 39P361E*02, 39P361E*03, 39P362E*02, 39P362E*03, 39P450J*01, 39P450J*02, 39P450K*01, 39P450K*02, 39P450K*03, 39P450L*00, 39P452E*02, 39P452E*03, 39S355J*01, 39S367E*02, 39S367E*03, 39S455J*01, 39S455J*02, 39S455K*01, 39S455K*02, 39S455K*03, 39S455L*00, 39S500K*01, 39S500K*02, 39S500K*03, 39S500L*00, 39S505E*02, 39S550J*02, 39S550K*01, 39S550K*02, 39S550K*03, 39S550L*00, 39S555J*01, 39S555J*02, 39S555K*01, 39S555K*02, 39S555K*03, 39S555L*00
Additional details
Also known as: 0198001021 - B018 - M77, (770J3), 3PJ1956
Installation notes
Belt sizes are precise. Match the length and the rib count exactly; a near-size belt will slip or overload the motor. The model number is on the rating plate, usually inside the door or on the back panel. Compare it with the model list before you buy. The exploded parts diagram is included in the product photos so you can confirm the item number.
Frequently asked questions
Is 4055576997 a genuine Simpson part?
Yes. This is the manufacturer's own part, not an aftermarket copy.
Which models does this minimax drive belt 770J3 fit?
It fits 39B450P-000, 39B450P*01, 39B450P*02 and 66 other models listed above. Always confirm your model number first.
What part numbers does 4055576997 replace?
4055576997 can be used in place of 0198001021 and B018.
What if I am not sure this is the right part?
Compare the part number on your old part with the numbers listed above. If they differ, check your model number against the model list.
