Description

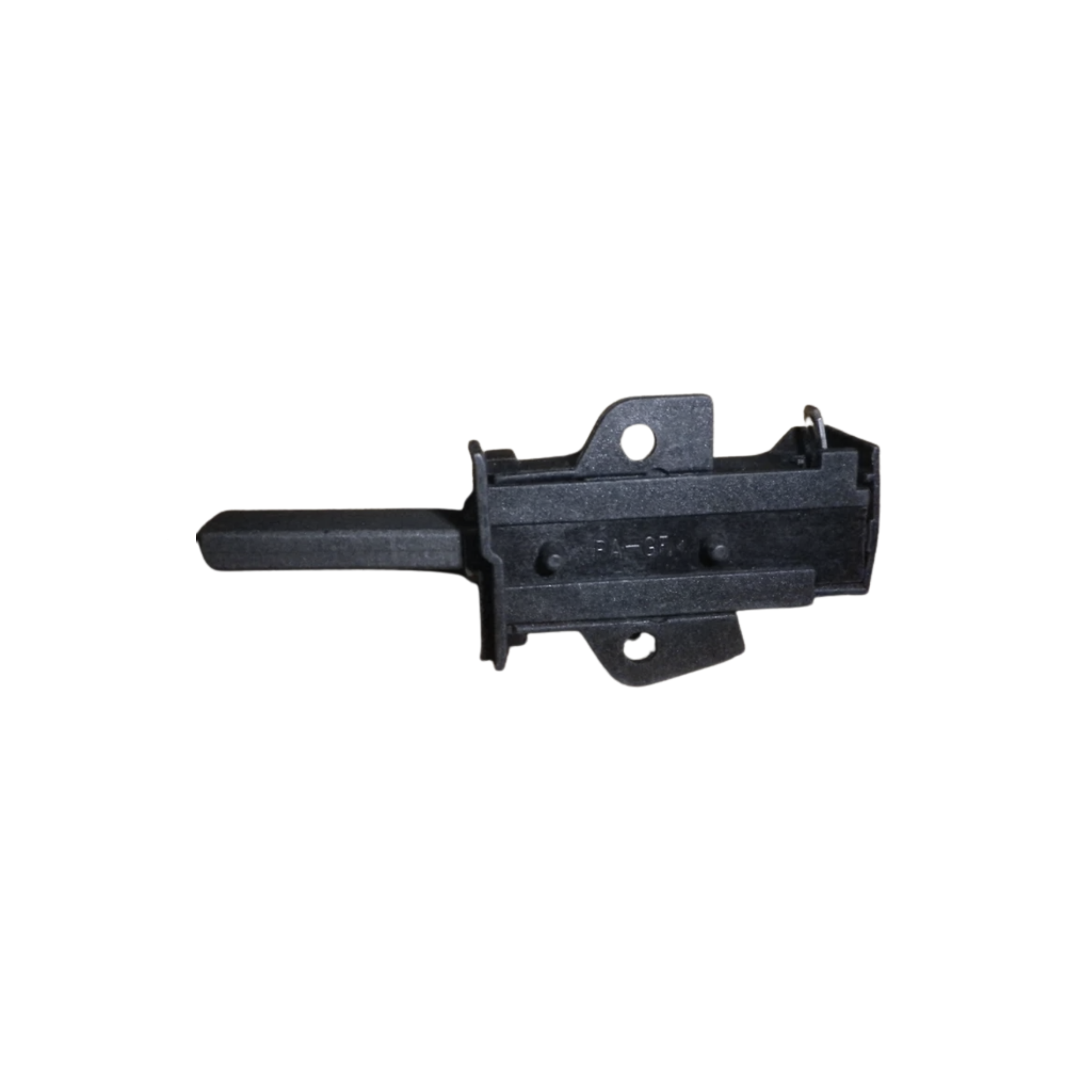

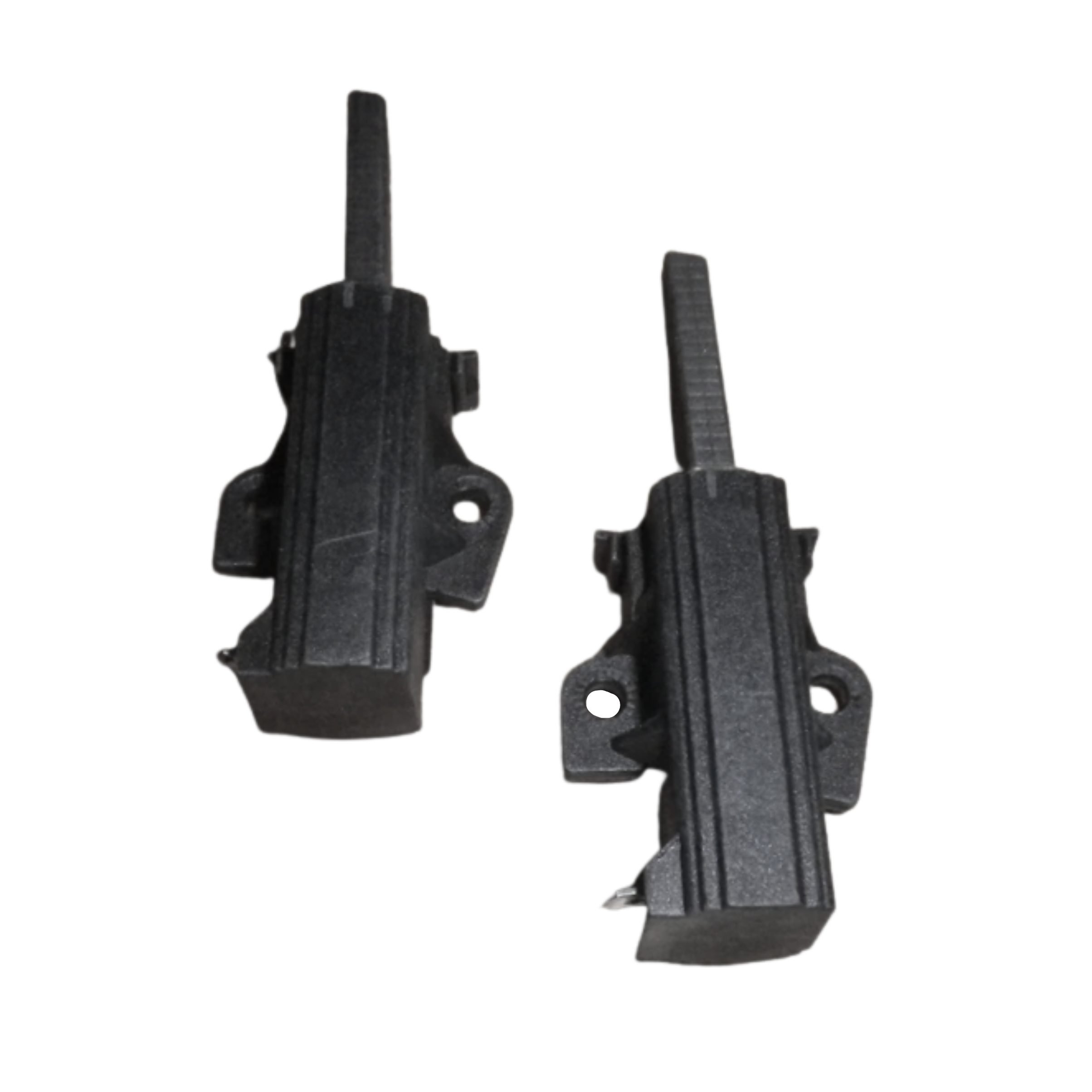

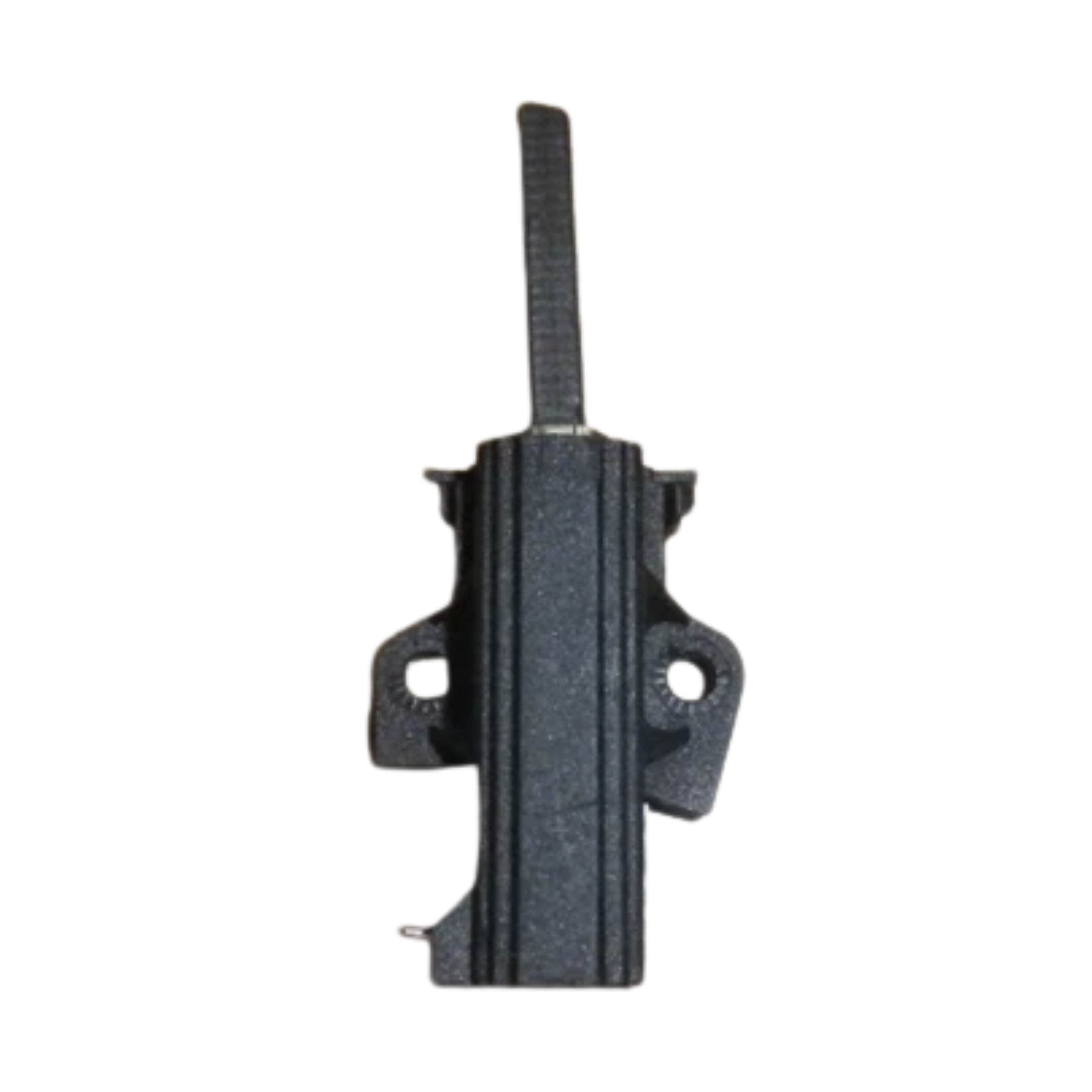

BT102 Electrolux, Whirlpool Washing Machine Carbon Motor Brush Kit 5 x 12.5 x 32MM
Similar to part no: BT421, UN12102, RS84732, CAR89, 9894, 9894L, 9894WP, Whirlpool 481281719419, Indesit C00114885, Electrolux, AEG 4006020152
Carbon dimensions 32mm long X 5mm thickness X 12.5mm wide.
Mounting holes 24mm apart. Locating spikes 18.5mm apart. Mounting holes 19mm back from front end of brushholder. Front locating spike is 9mm from front of brushholder. Brushholder length 45mm.
Brushholder has PA-GF on bottom. Carbon has L93MF7 written on the side.
4.8mm side facing spade terminals.
Models this part suits:
LAV54600 (91400309200), LAV64600 (91400309000), LAV66600 (91400308900), LAV74330 (91400220403), LAV74330-W (91400220401), LAV74335 (91400220603), LAV74335-W (91400220602), LAV74630-W GB- (91400209703), LAV74630-W (91400209700), LAV74630-W (91400209702), LAV74700 (91400317400), LAV74700 (91400324800), LAV74800 (91400308800), LAV76639-W (91400224300), and possibly more.
Give us a call on 0863907132 if you are not sure about this part.
