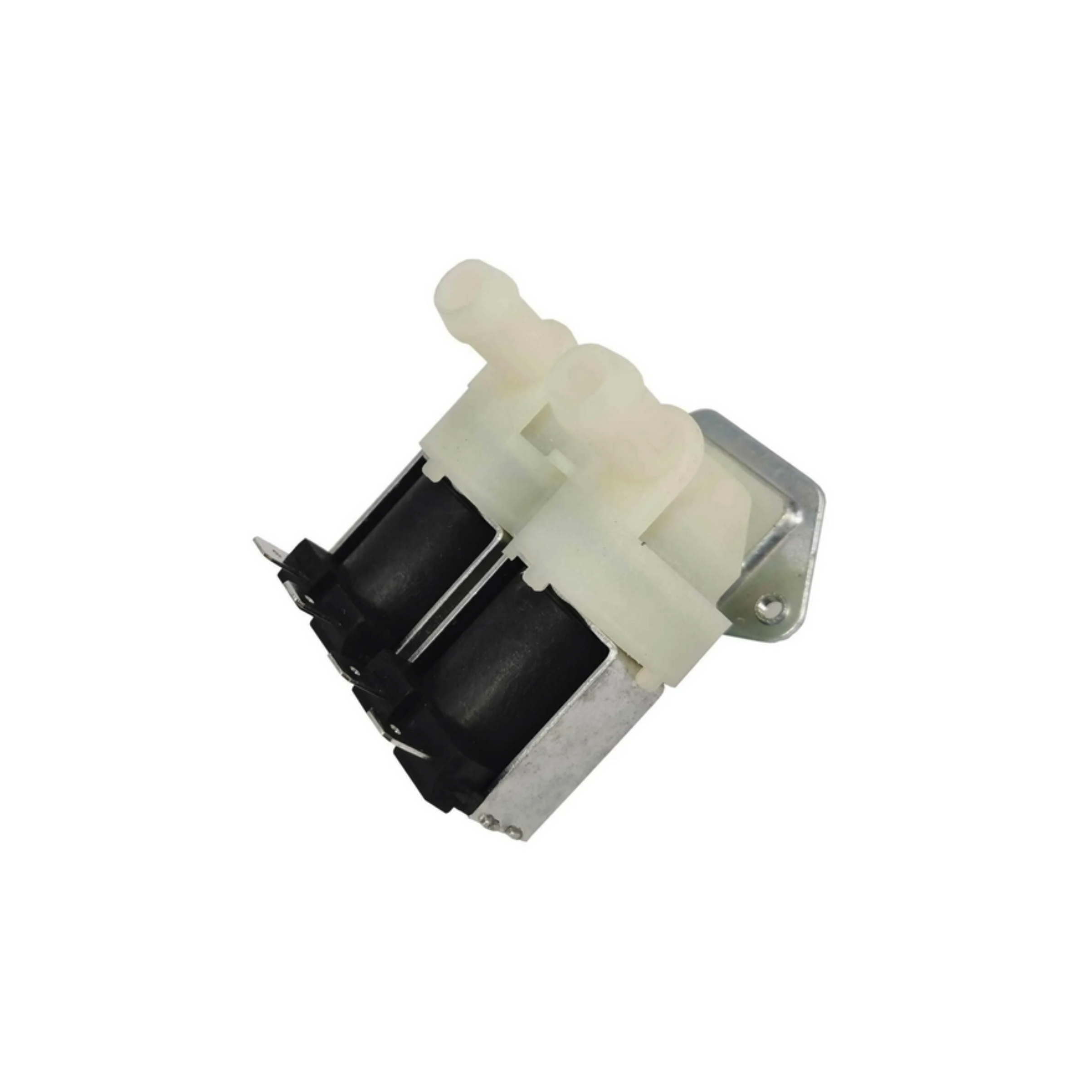

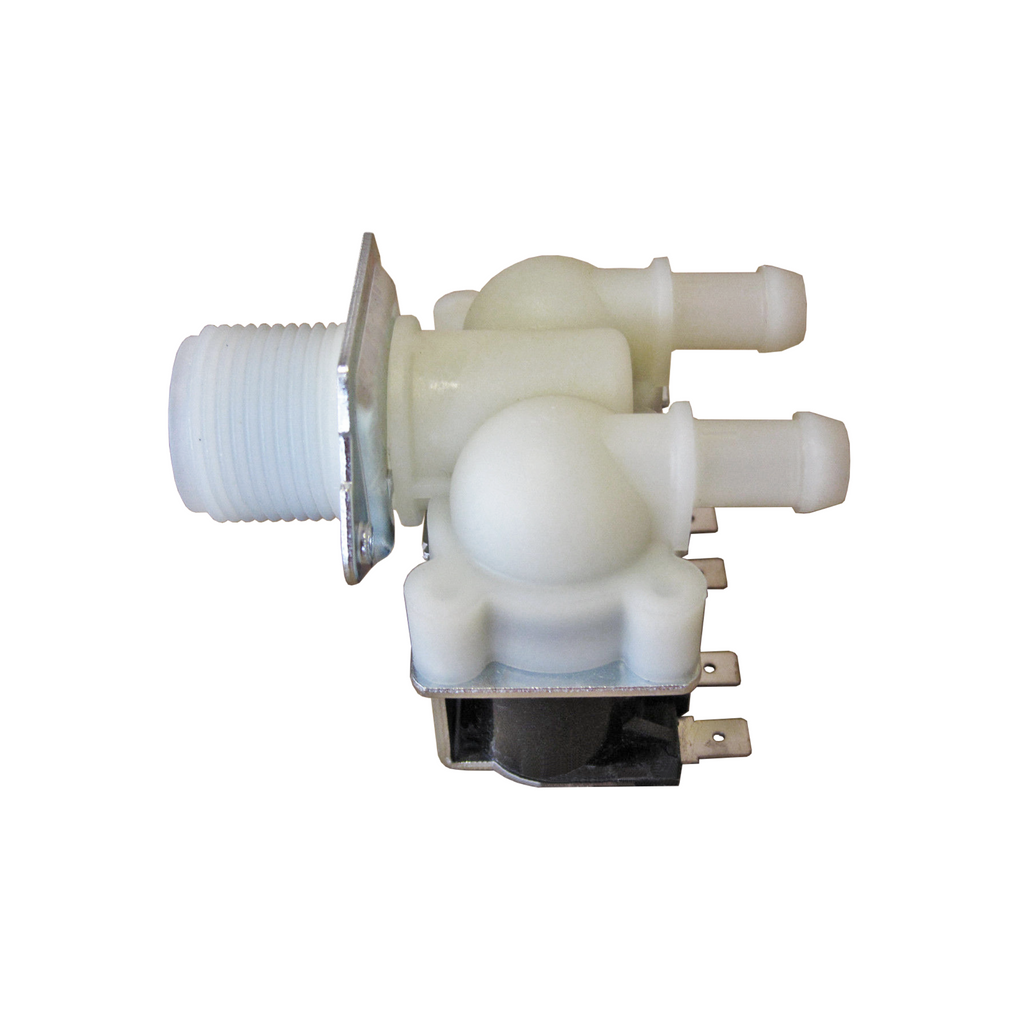

5220FR1251E Samsung, LG Washing Machine Duel Inlet Valve - W001, 5220FR2067B
Part No: W001. Replaces genuine part numbers G530240 & G358495, 5221EN1005B DC62-00024F
Equivalent to Part nos. WV024A, WV024B, GP003, 75866001, W103, DC62-00024F, 5220FR1251E.

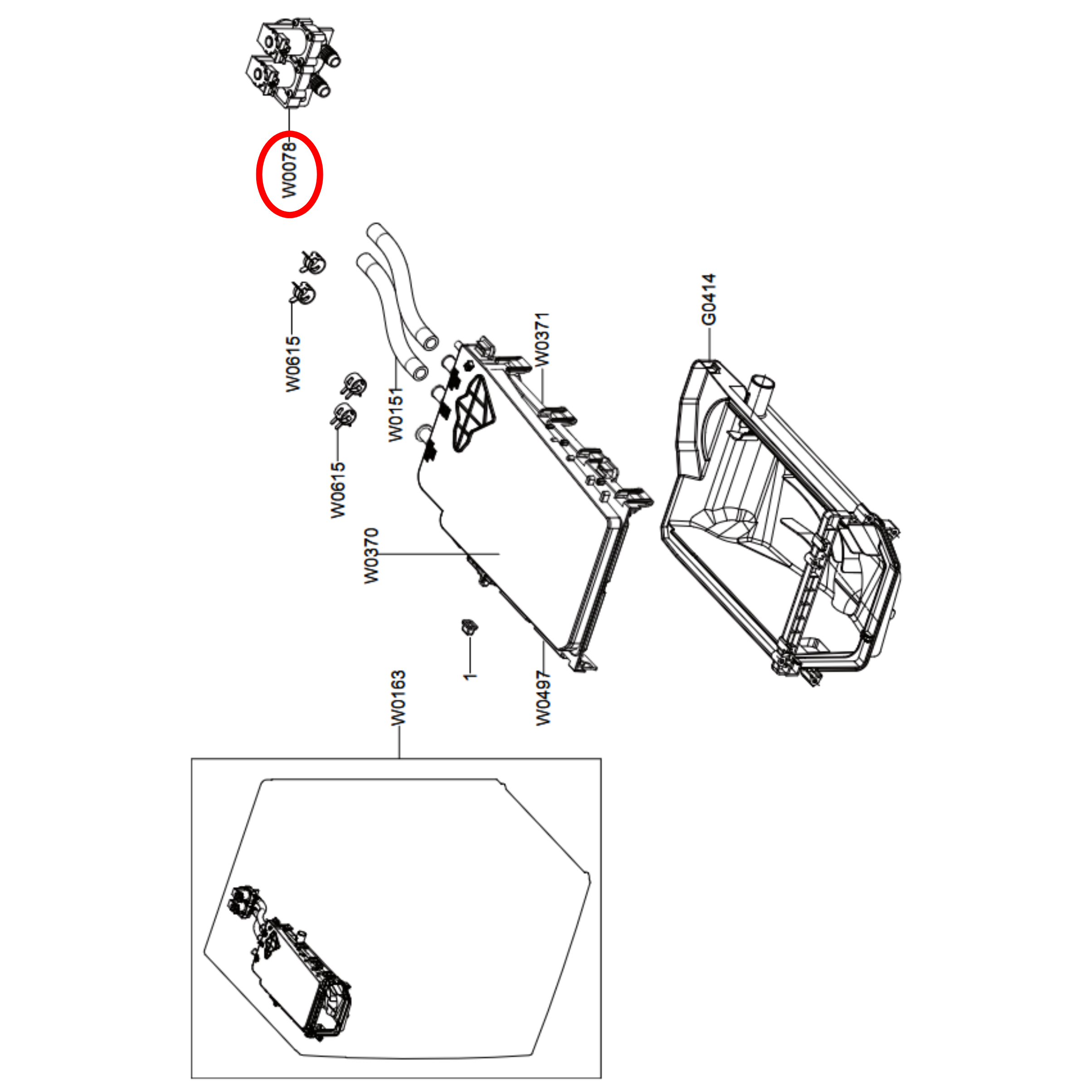

5220FR1251E is number W0078 on the diagram. The diagram is from model WW75H5240EW.

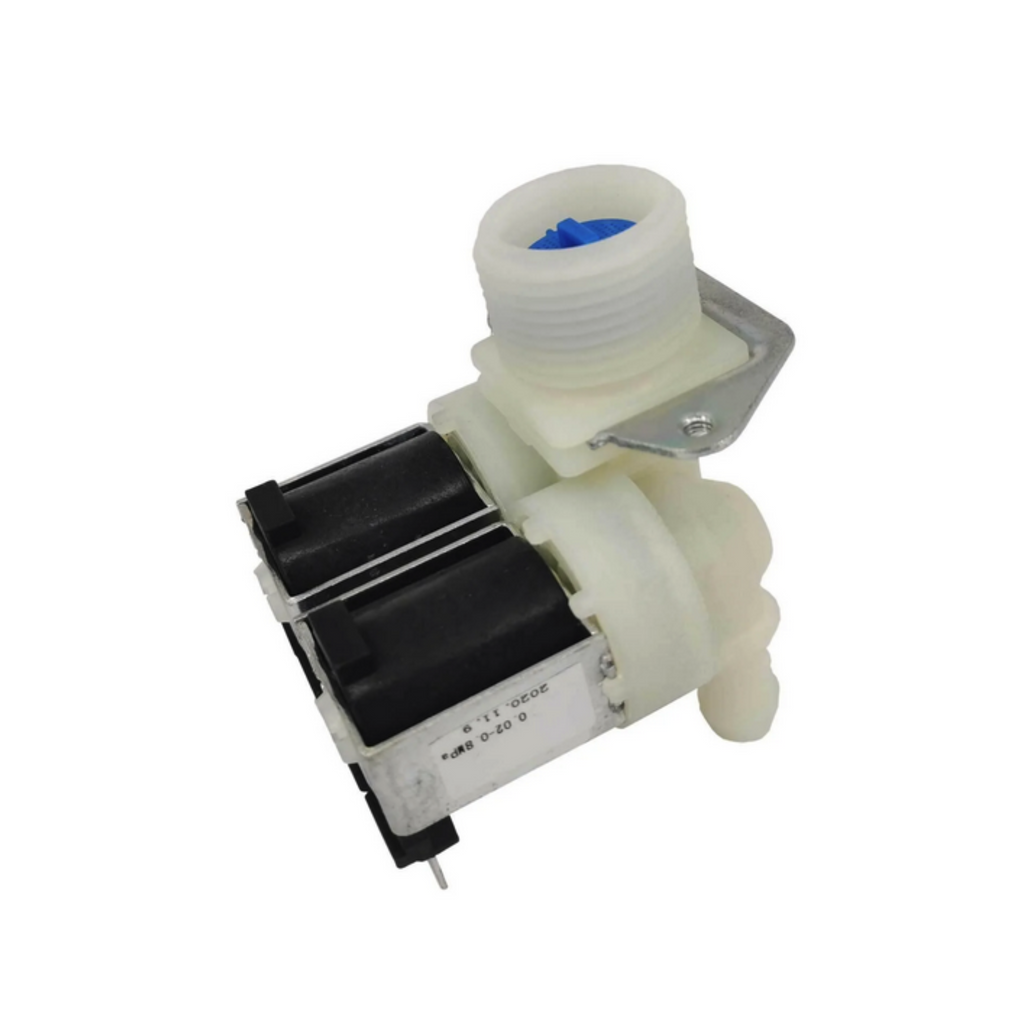

Outlets suit 10mm hose. Inlet is standard 3/4" BSP standard tap thread (actual thread diameter 1").
This solenoid valve is a suitable replacement for the dual valve used in some Pacific Gorenje front loading washing machines, Hoover Electra front loading washing machines and many others. Also suits some Samsung & LG models.
Flow rate 15litre/min. 240VAC solenoids.
Models this part suits:
WW75H5240EW, WD10020D (F1268QDP.ABWREAP), WD-1015FB (WD-10150FB.AOWREAP), WD-10160TP (WD-10160TP.AOWREAP), WD-10160TP (WD-10160TP.AOWRRAN), WD-10160TUP (WD-10160TUP.AOWPBWT), WD-1018C (WD-10160TP.AOWREAP), WD-10230TP (WD-10230TP.AOWREAP), WD-1023C (WD-10230TP.AOWREAP), WD-1025FB (WD-10151FB.AOWREAP), WD10490C (WD-10481TP.ABWREAP), WD-10490TP (WD-10490TP.AOWREAP), WD-10490TP (WD-10490TP.AOWRRAN), WD-1049C (WD-10490TP.AOWREAP), WD-1049C (WD-10490TP.AOWRRAN), WD-1050FH (WD-1050FH.OWREAP), WD-1074FHB (WD-1074FHB.AOWREAP), WD11020D1 (WD-11391TDK.ABWREAP), WD11020D (WD-11390TDK.ABWREAP), WD1200D (F12C3QDP.ABWREAP), WD1200D (FH2C3QDP.ABWREAP), WD12020D (F1222TD.ABWREAP), WD12021D6 (F12B8QD1.ABWREAP), WD1207NCW (F2J6QNP0W.ABWREAP), WD-1223FB (WD-12230FB.AOWREAP), WD-1236TD (WD-12362TD.AOWREAP), WD-12380TBP (WD-12380TBP.AOWRRAN), WD-1238C (WD-12380TBP.AOWREAP), WD-1253FH (WD-1253FH.OWREAP), WD12580D6 (F1255FD.ABWREAP), WD12590D6 (F1255FD.ABWREAP), WD12590D6 (FH255FD.ABWREAP), WD12595D6 (F1255FD7.ASSREAP), WD12595D6 (FH255FD7.ASSREAP), WD-1274FHB (WD-1274FHB.AOWREAP), WD13020D1 (F1322TD1.ABWREAP), WD13020D (F1322TD.ABWREAP), WD14022D6 (F1496TD3.ABWREAP), WD14023D6 (F14A8TD.ABWREAP), WD14024D6 (F14A8GD.ABWREAP), WD14030D6 (F1480FD.ABWREAP), WD14030D (F1403FD3.ABWREAP), WD14030D (F1403FD.ABWREAP), WD14039D6 (F1480FD9.ACRREAP), WD14039D (F1403FD39.ACRREAP), WD14039D (F1403FD9.ACRREAP), WD14060D6 (F1443KD.ABWREAP), WD14070D6 (F1495KD.ABWREAP), WD14130D6 (F14A8FD.ABWREAP), WD14135D6 (F14A8FD7.AESREAP), WD-1460FHD (WD-1460FHD.AOWREAP), WD-1470FD (WD-14220FD.AOWREAP), WD1475NCW (F4J6QNP1W.ABWREAP), WD-1610FD (WD-16100FD.AOWREAP), F1495BD (F1495BD.ABWQEDG), F14A8FD (F14A8FD.ABWQESW), F14A8TD (F14A8TDP.ABWPCOM), WD-80130F (WD-80130F.AOWPEIN), WD-80130TUP (WD-80130TUP.AOWRRAN), WD-8013C (WD-80130TP.AOWREAP), WD-8013F (WD-80130F.AOWREAP), WD-8015C (WD-80130TUP.AOWREAP), WD-8016C (WD-80160TUP.AOWREAP), WD-8016F (WD-80160F.AOWREAP), WD-8023FB (WD-80230FB.AOWREAP), WD-8026C (WD-80260TP.AOWREAP), WD-8030W (WD-8030W.OWREAP), WD80490C (WD-80490TP.ABWREAP), WD-8050FH (WD-8050FH.OWREAP), WD-8074FHB (WD-8074FHB.AOWREAP), WD-F14427D (F14A8FD7.AESPEPN), and possibly more.
Give us a call on 0863907132 if you are not sure about this part.
