Description

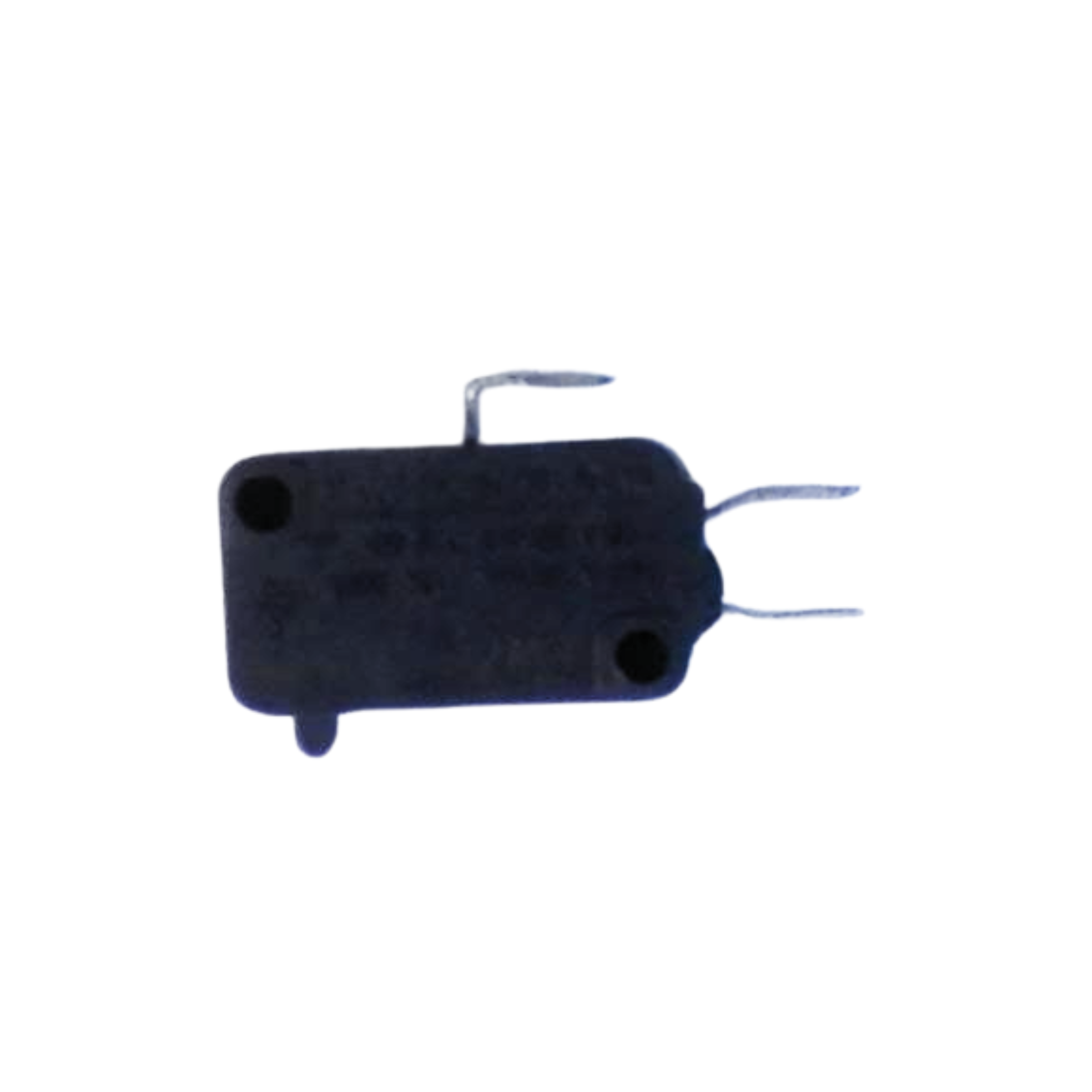

FP018A Fisher & Paykel Washing Machine Micro Switch SML Terminal 4.8Mm
The micro switch (out of balance switch) is located under the main PCB. If the contacts corrode, the switch will appear to be open (O/B) and the motor will not rotate. The machine will not spin or it does not fill as the bowl rotates on filling for the load sensor. It will start to rotate and fill and then stops, repeating this a couple of times,
The switch needs replacing if this happens or there is corrosion at the spade connectors.
As for the removal of main PCB, before removing the wires, take a picture of the connections for ease of replacement as they only fit the correct way.
This part suits many Fisher & Paykel Washing Machine
Give us a call on 0863907132 if you are not sure about this part.
