Description
931330461 Smeg Oven Door Hinge - 931330806

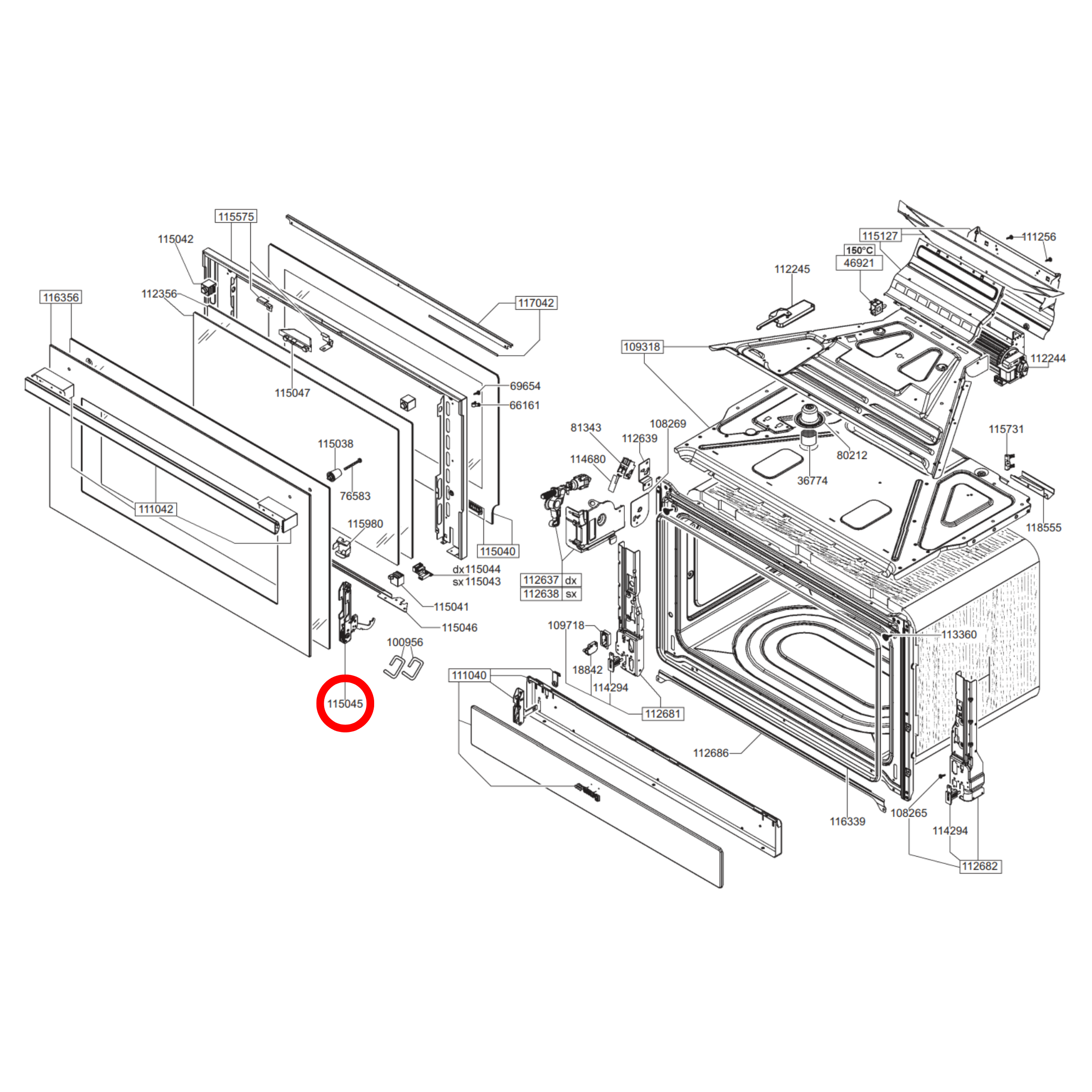

931330461 supersedes 931330806 and is number 115045 on the diagram. The diagram is from model CPF9GPANA.

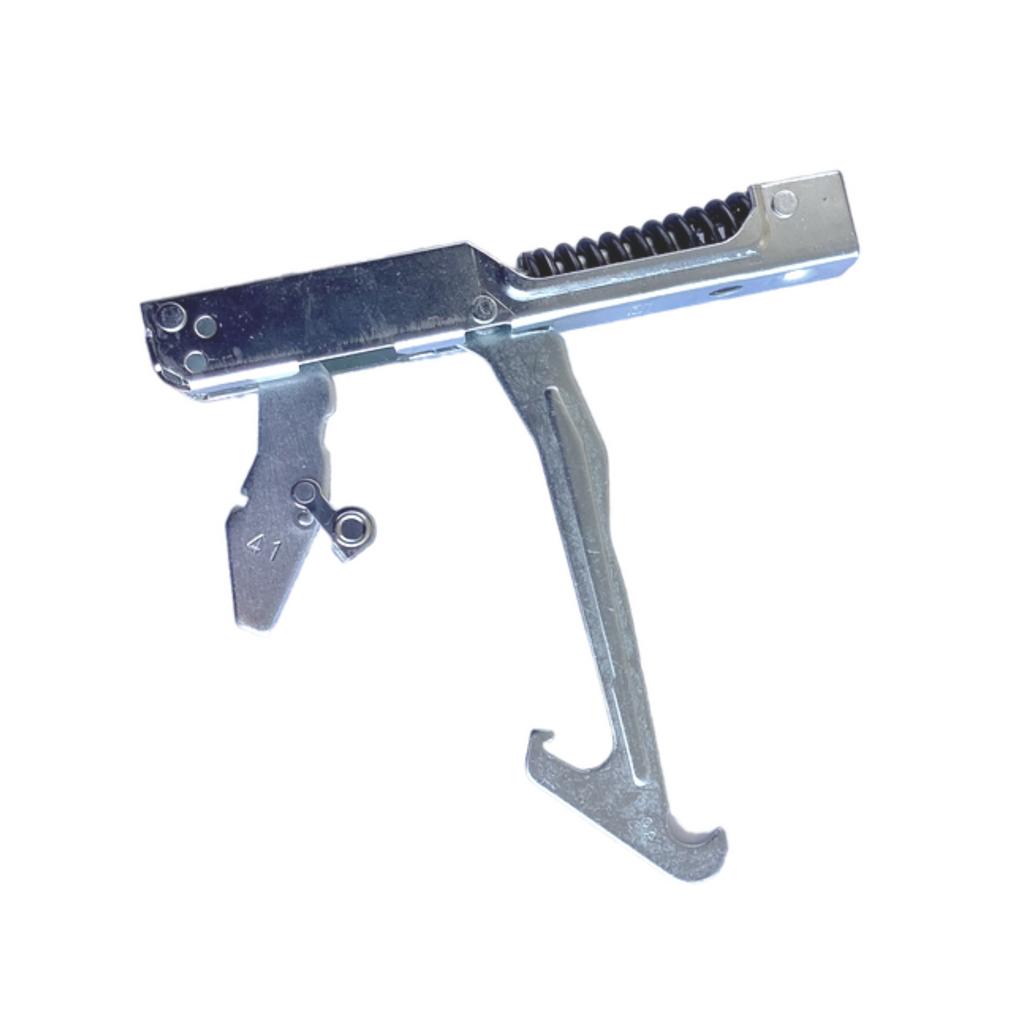

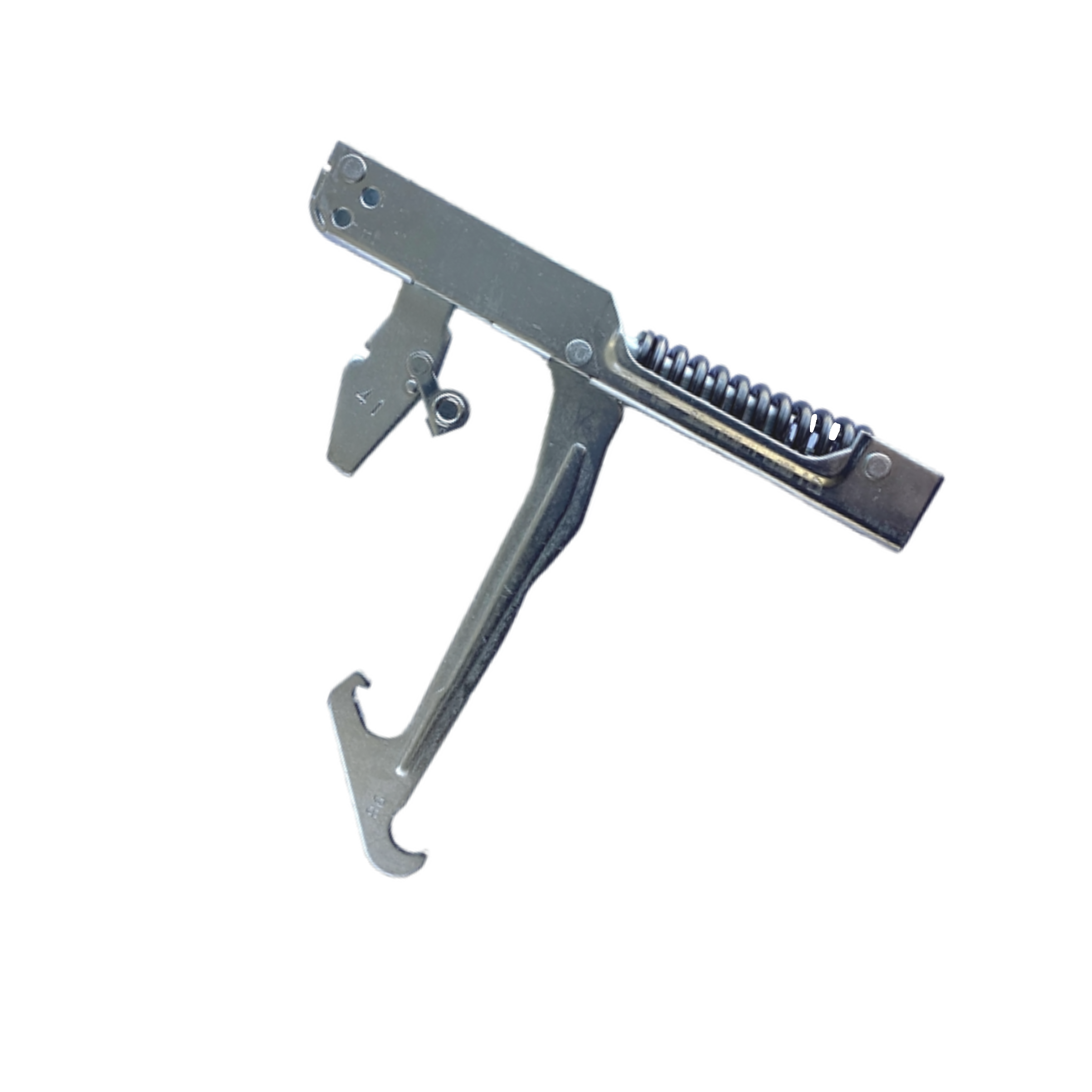

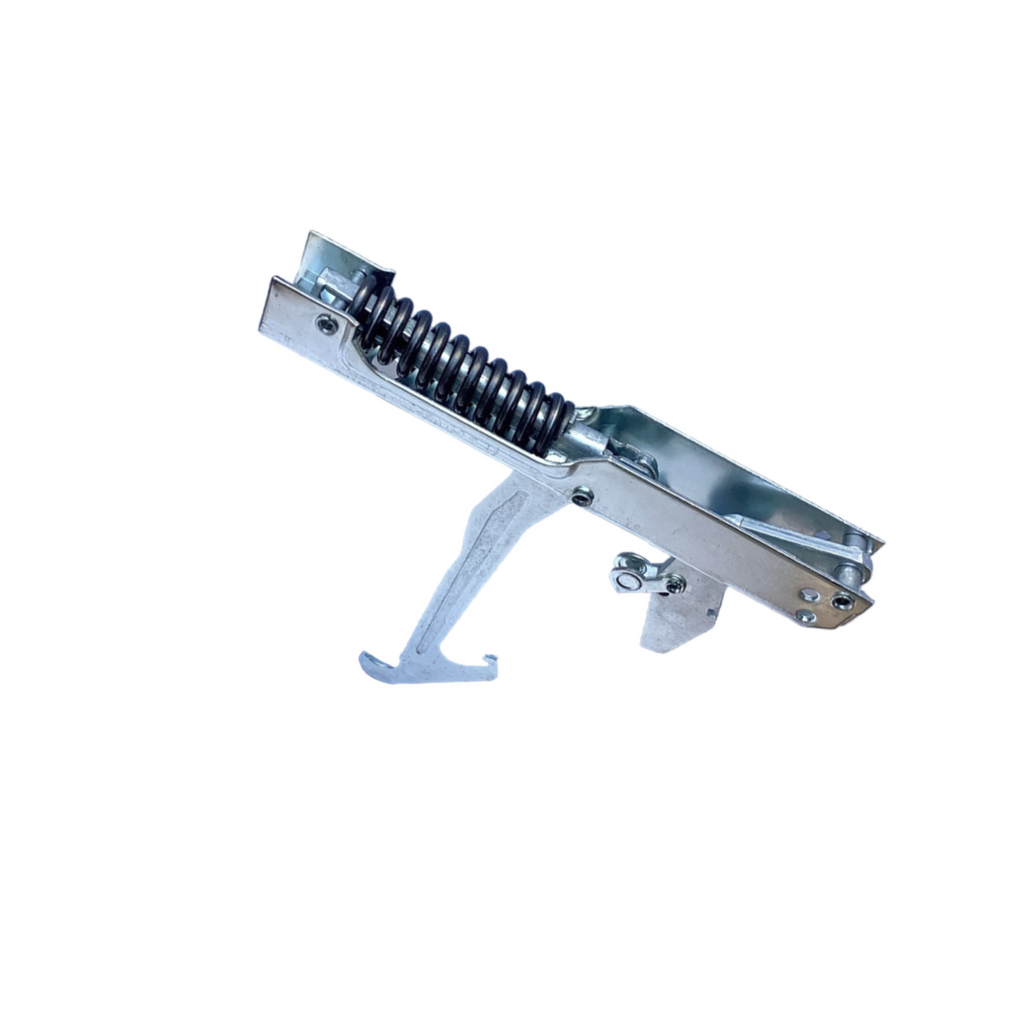

Hinge has "41" stamped on the small hinge arm and "98" stamped on the large hinge arm. The mounting screw hole is recessed into the front of the hinge bracket.
When looking at the side of the hinge, the cutaway section near the spring where the frame reduces in size, is 12mm high and 9mm on the metal frame. There is a very similar looking hinge that has a different height cutaway listed here.
Models this part suits:
SA360X-5, SA310X5, SD012-5, SA410X-5, SA210X1, SA410X-5, SA420EB, SA420EB-5, SA420X, SA420X-1, SA420X-5, SA360X-1, SA380X, FS61XNG, FS60WHNG, SA210X/1, SA440X, and possibly more.
Give us a call on 0863907132 if you are not sure about this part.
