Description

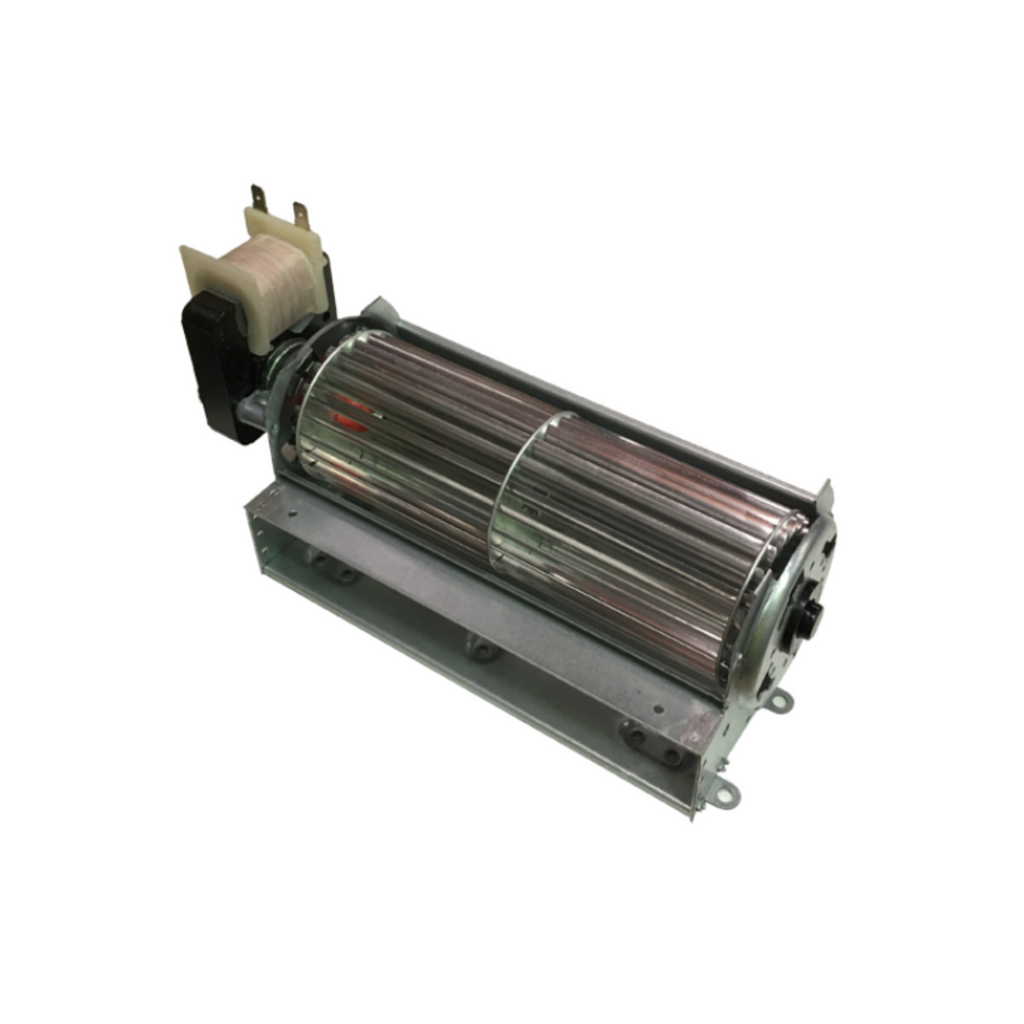

Universal rotary fan motor 190MM right for ovens and stoves, part number SG100. Also known as RF039LHS.
What this part does
The motor drives the drum, fan, pump or turntable of the oven. It is one of the hardest working parts of the appliance.
When to replace it
- A humming noise but no movement
- Burning smell, excessive heat or sparking
- Slow or jerky operation, or the appliance stopping under load
Part details
| Part number | SG100 |
|---|---|
| Alternative numbers | RF039LHS |
| Brand | Universal / unbranded |
| Part type | Aftermarket replacement part |
| Appliance | Oven |
| Category | Motor |
Fits these models
This part suits a range of oven models from different brands.
Additional details
This part is also known as: 112600, 112800, SE204, CK410, 1333, 3051100
Top mounting holes 150mm apart & bottom 18mm X 76mm + 76mm apart. Other holes on the bottom are also for mounting with self tapping screws.
Drum dimensions: Length 190mm X Depth 98mm X Height 83mm. Overall length including motor 250mm.
Installation notes
Check the mounting pattern, shaft size and electrical rating against the original. Replace worn brushes, belts or bearings at the same time if they are separate parts. Match the part number on your old part, or the model number on your appliance's rating plate, to the details above before ordering.
Frequently asked questions
What part numbers does SG100 replace?
SG100 can be used in place of RF039LHS.
What if I am not sure this is the right part?
Compare the part number on your old part with the numbers listed above. If they differ, check your model number against the model list.
