Description

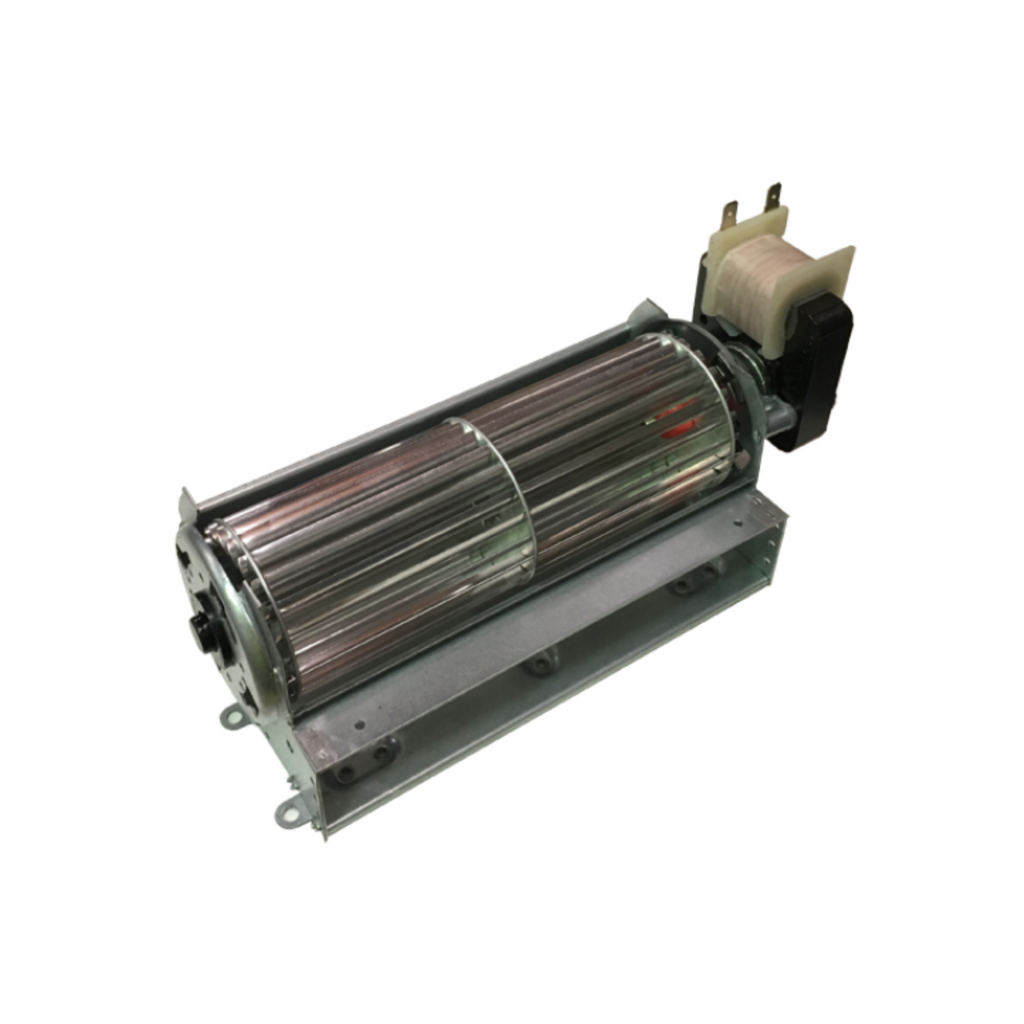

SG101 Oven Rotary Fan Motor 190Mm Right Hand - RF039RHS
This part is also known as SE204
240VAC, 6.4mm spade terminal for connection & earthing.
Top mounting holes 150mm apart & bottom 18mm X 76mm + 76mm apart. Other holes on the bottom are also for mounting with self tapping screws.
Drum dimensions: Length 190mm long X Depth 98mm X Height 83mm. Overall length including motor 250mm.
The motor can be re-positioned so that the terminals point in any of 4 directions.
Models this part suits:
This part suits many oven models from different brands. Contact us with the model number to confirm compatibility.
Give us a call on 0863907132 if you are not sure about this part.
