Description

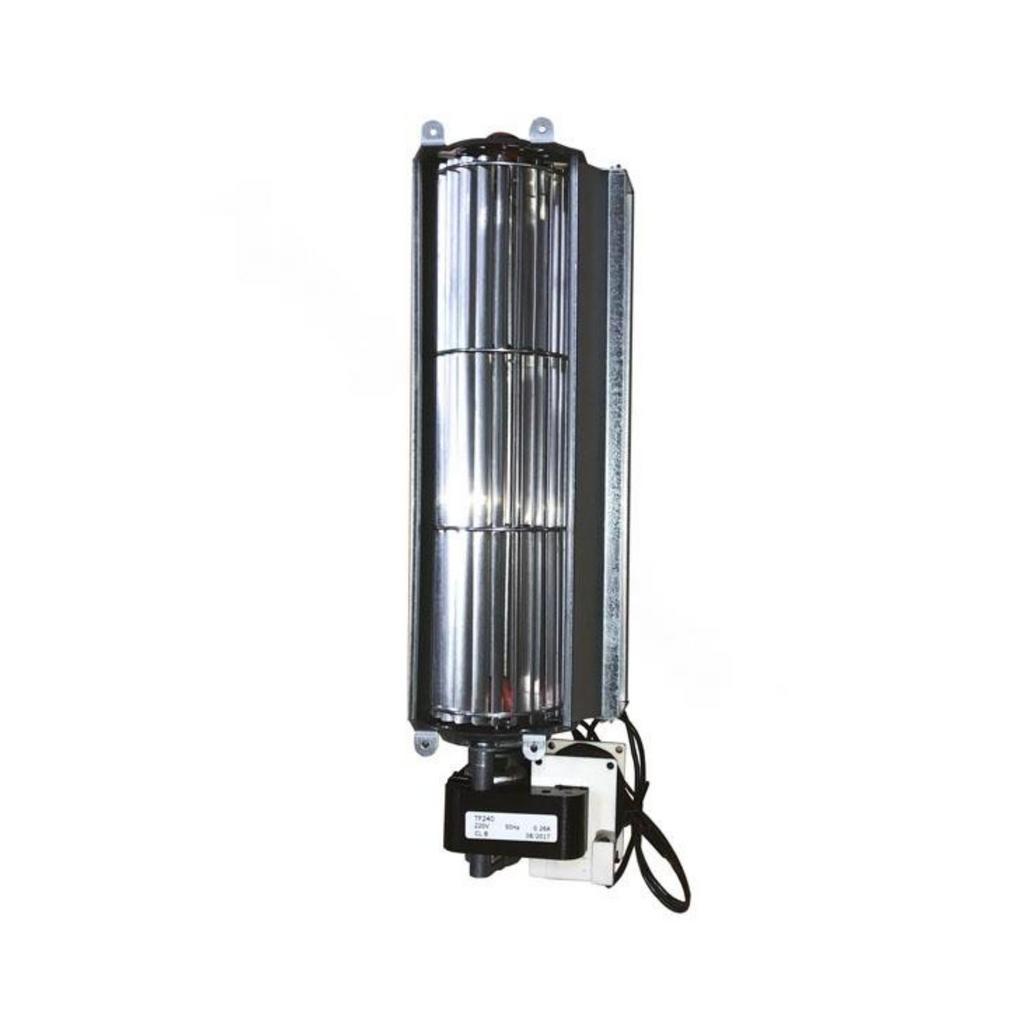

Universal rotary fan motor 250MM right hand for ovens and stoves, part number SG103.
About this motor
The motor drives the drum, fan, pump or turntable of the oven. It is one of the hardest working parts of the appliance.
Signs it needs replacing
- A humming noise but no movement
- Burning smell, excessive heat or sparking
- Slow or jerky operation, or the appliance stopping under load
Key details
| Part number | SG103 |
|---|---|
| Brand | Universal / unbranded |
| Part type | Aftermarket replacement part |
| Appliance | Oven |
| Category | Motor |
Fits these models
This part suits a range of oven models from different brands.
Good to know
240VAC, 6.4mm spade terminal earthing, 450mm long fly leads for connection.
Four top mounting holes 250mm x 46mm apart & four bottom holes 255mm X 41mm apart. Other multiple holes on the bottom also for mounting with self tapping screws.
Drum dimensions: Length 245mm X Depth 94mm X Height 93mm. Overall length including motor 320mm.
The motor can be re-positioned so that the orientation is any of 4 directions.
Before you order
Check the mounting pattern, shaft size and electrical rating against the original. Replace worn brushes, belts or bearings at the same time if they are separate parts. The model number is on the rating plate, usually inside the door or on the back panel. Compare it with the model list before you buy.
Frequently asked questions
Do I need a technician to fit this part?
Many parts can be fitted by a competent DIYer with the power disconnected. Gas, refrigeration and sealed-system work must be done by a licensed tradesperson.
