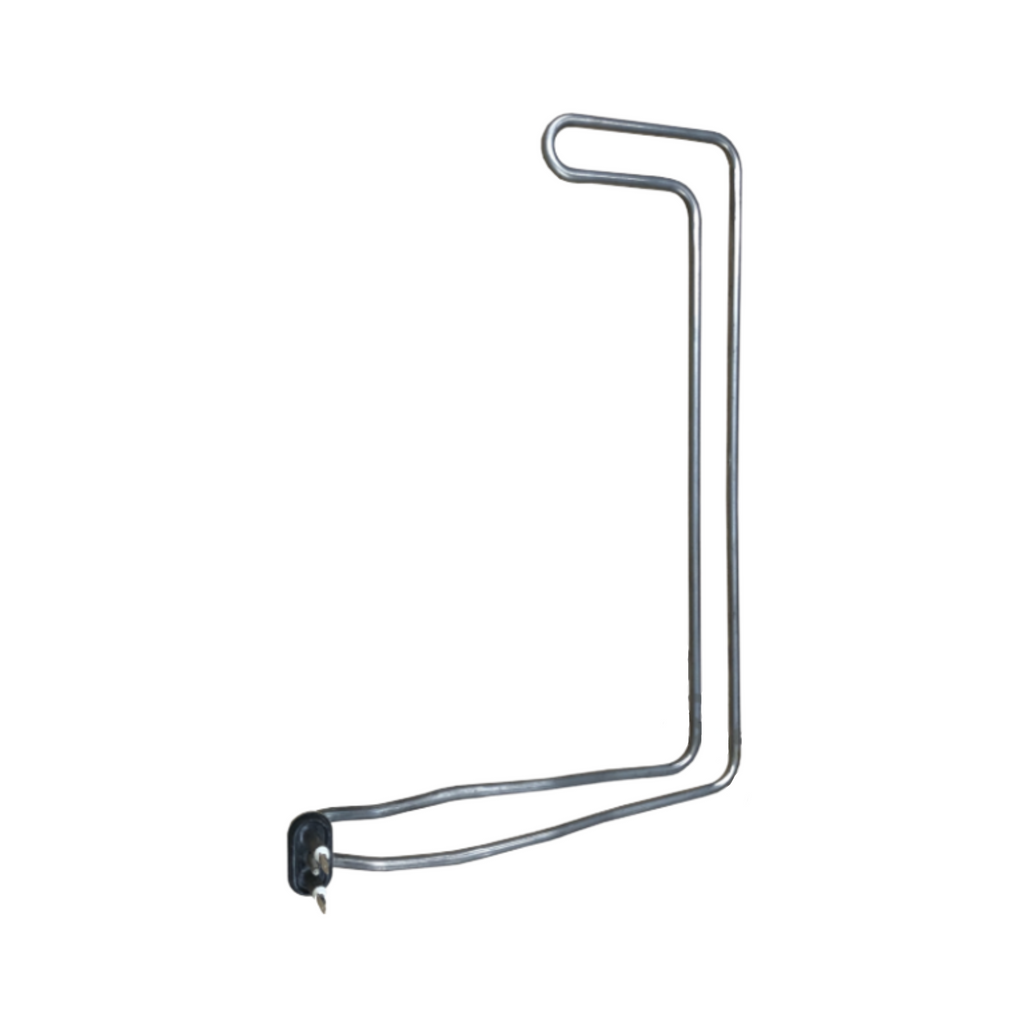

806890373 Smeg Dishwasher Heating Element - 806890358

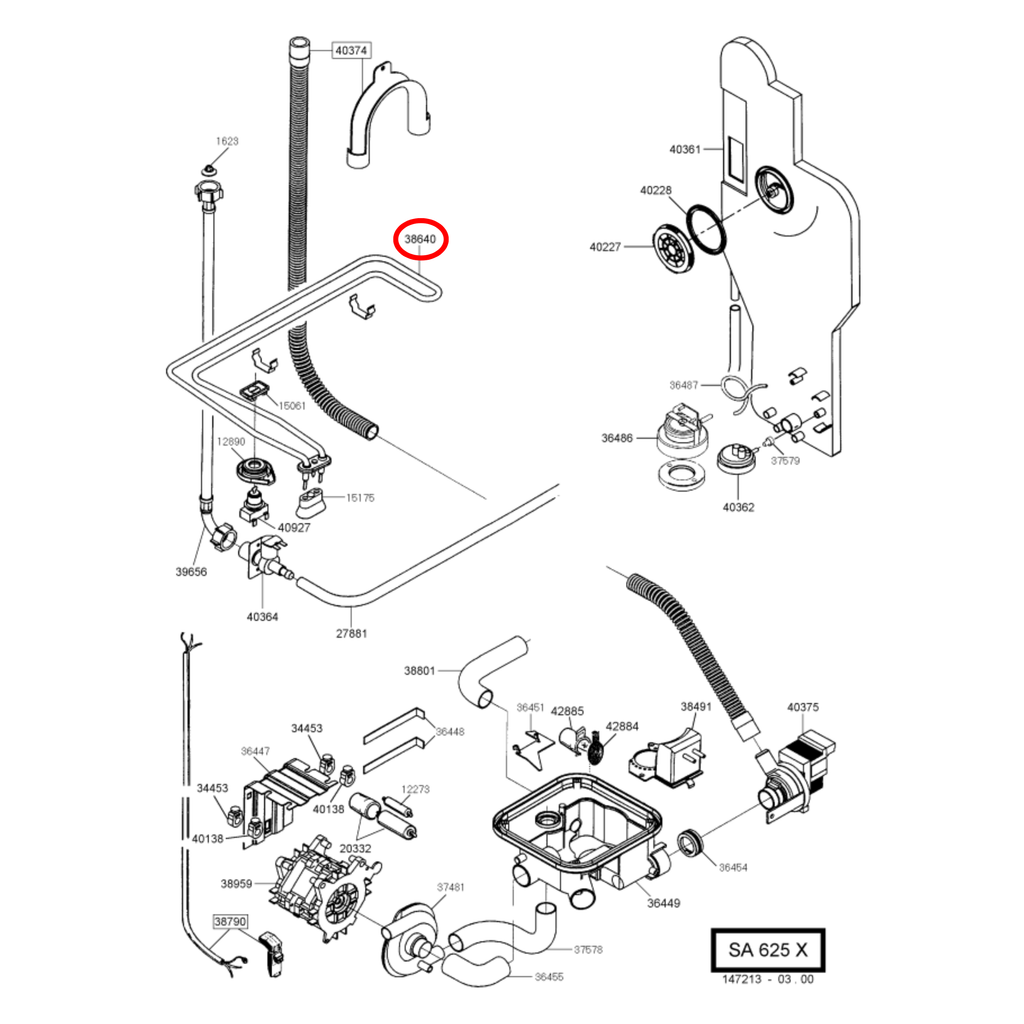

806890373 supersedes 806890358 and is number 38640 on the diagram. The diagram is from model SA625X.
Heating element, 2000Watt 240Volt. This part is often responsible for the dishwasher tripping the earth leakage circuit breaker in the meter board.
Terminals 25mm apart on an bracket 50mm X 27mm with a central mounting bolt. Arm length from center of terminals to far side is 310mm. Arm length of long arm furthest from the terminals is 450mm. Short arm is 150mm. Arm of element closest to the terminals has slight bends near the terminals. Fitted with 6.4mm spade terminals.
Models this part suits:
GVI682, GVI692 & Smeg LS19, LS21X, LS21X.1, LS21XS, OP43, OP54IX, PL50AX, PL620X, PL622X, PL623X, PL660EB, PL660X-EB, PL670X, PL672X-EB, ST971, ST974, STE972, STE974, STE975, SA620X-EB, SA625X, SA627X-W, SA628WH, SA628X, SA660EB, SA660X, SA660X-EB, SA662X-EB, SA670X1, SA670NE-EB, SA672XNE-EB, SA670X, SA680X, SA972, SA974, SA975, ST660, ST660E, ST662E, ST5562, ST690 & Omega DW2000X, DW2003X, and possibly more.
Give us a call on 0863907132 if you are not sure about this part.
