Description

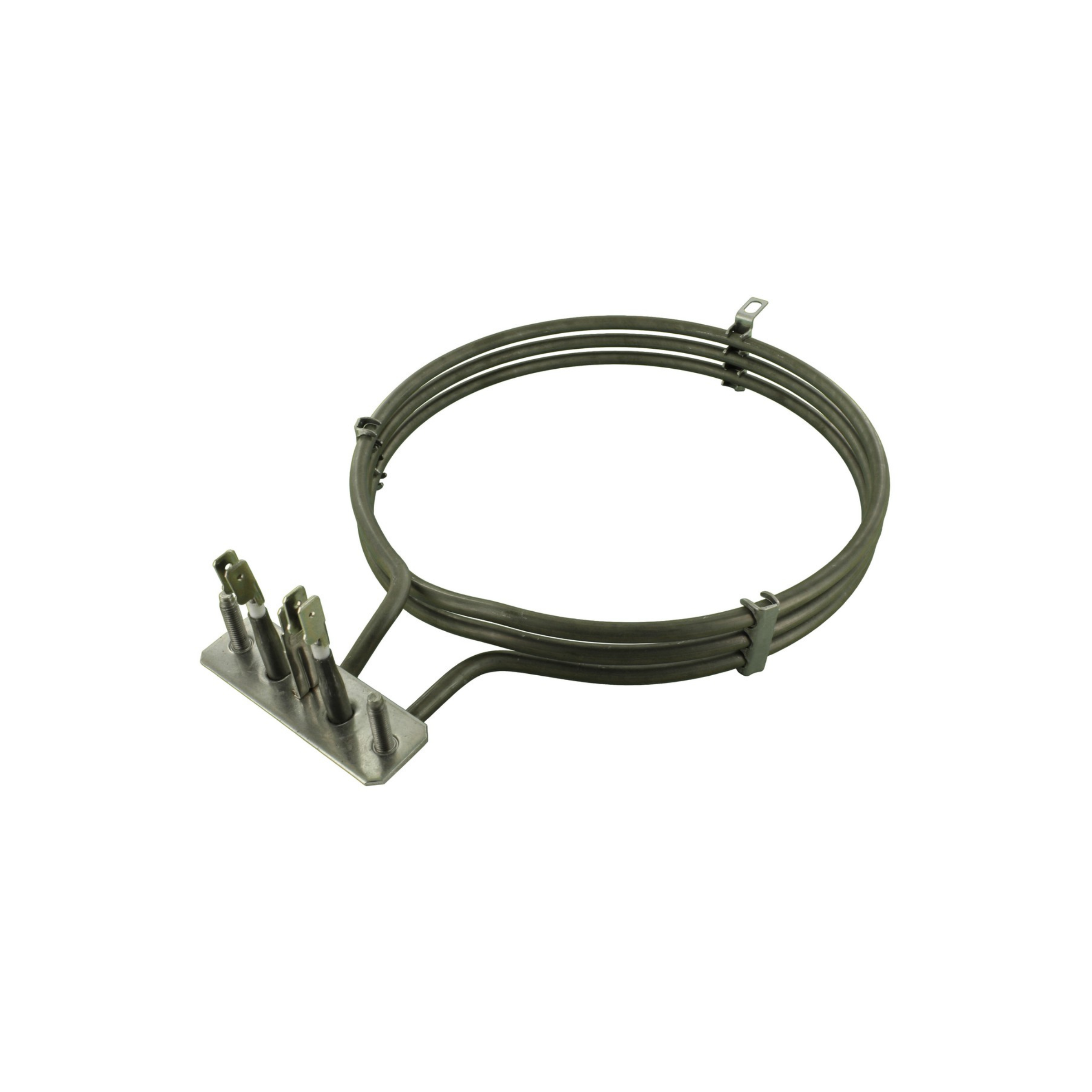

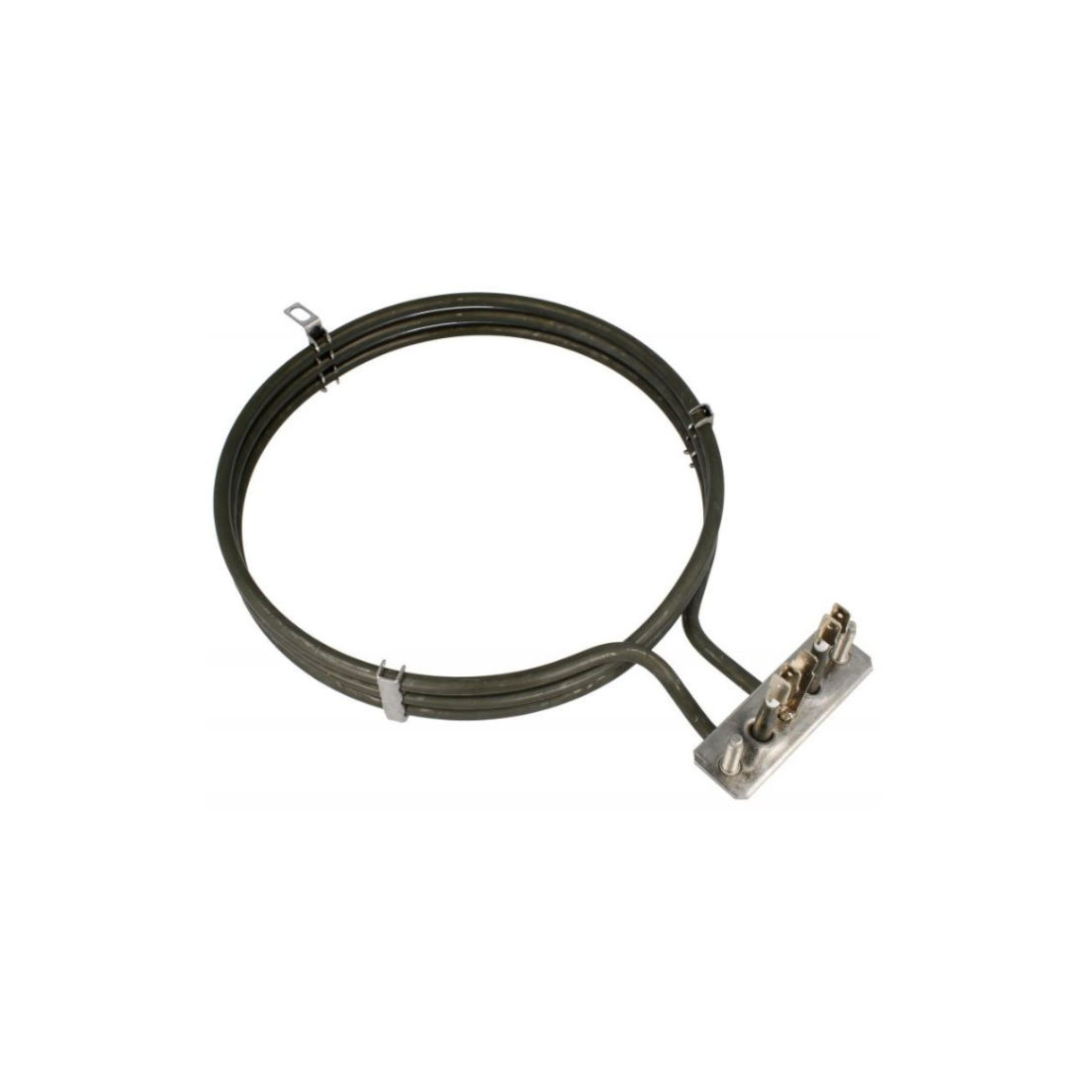

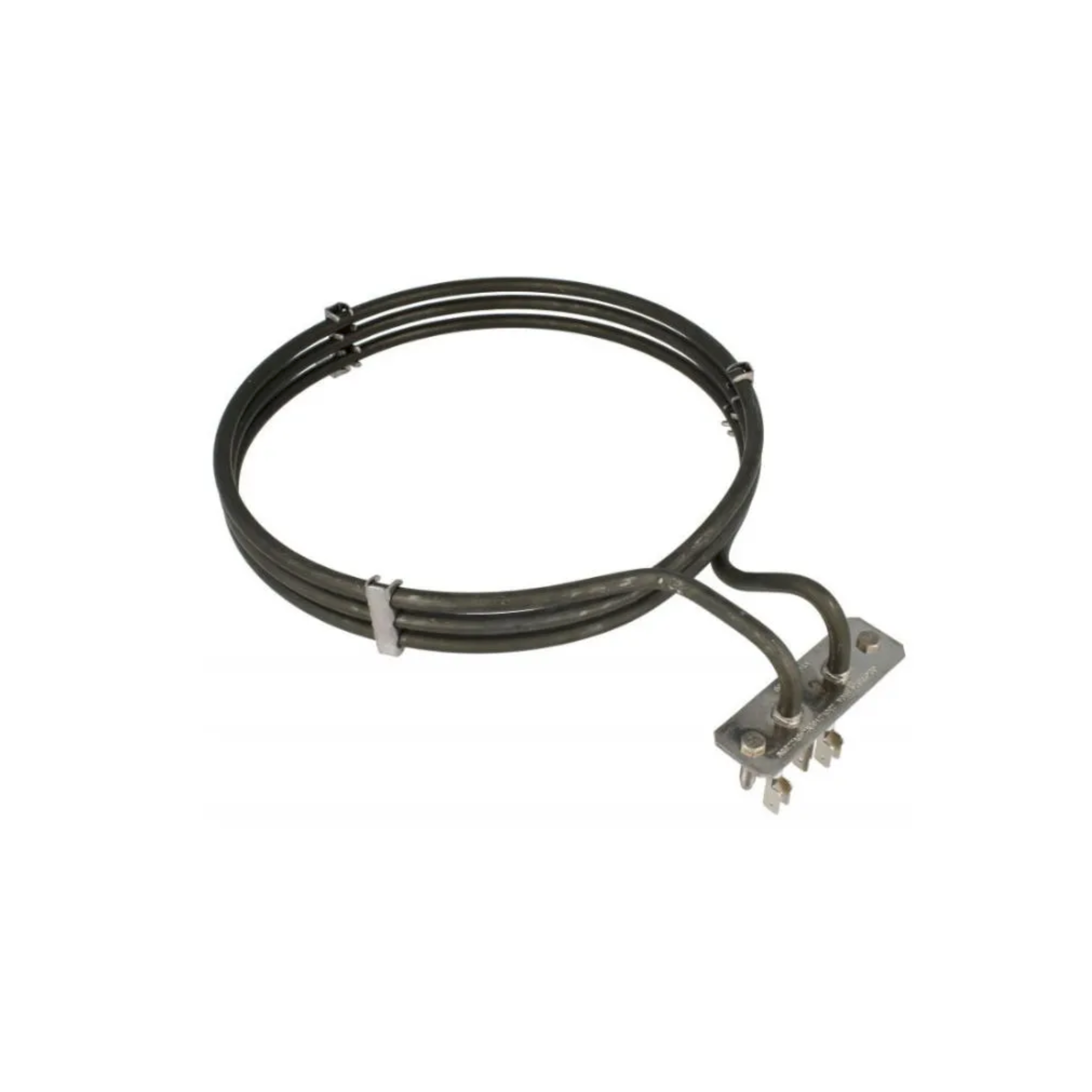

04986672 Miele Oven Fan Forced Element - 4438721

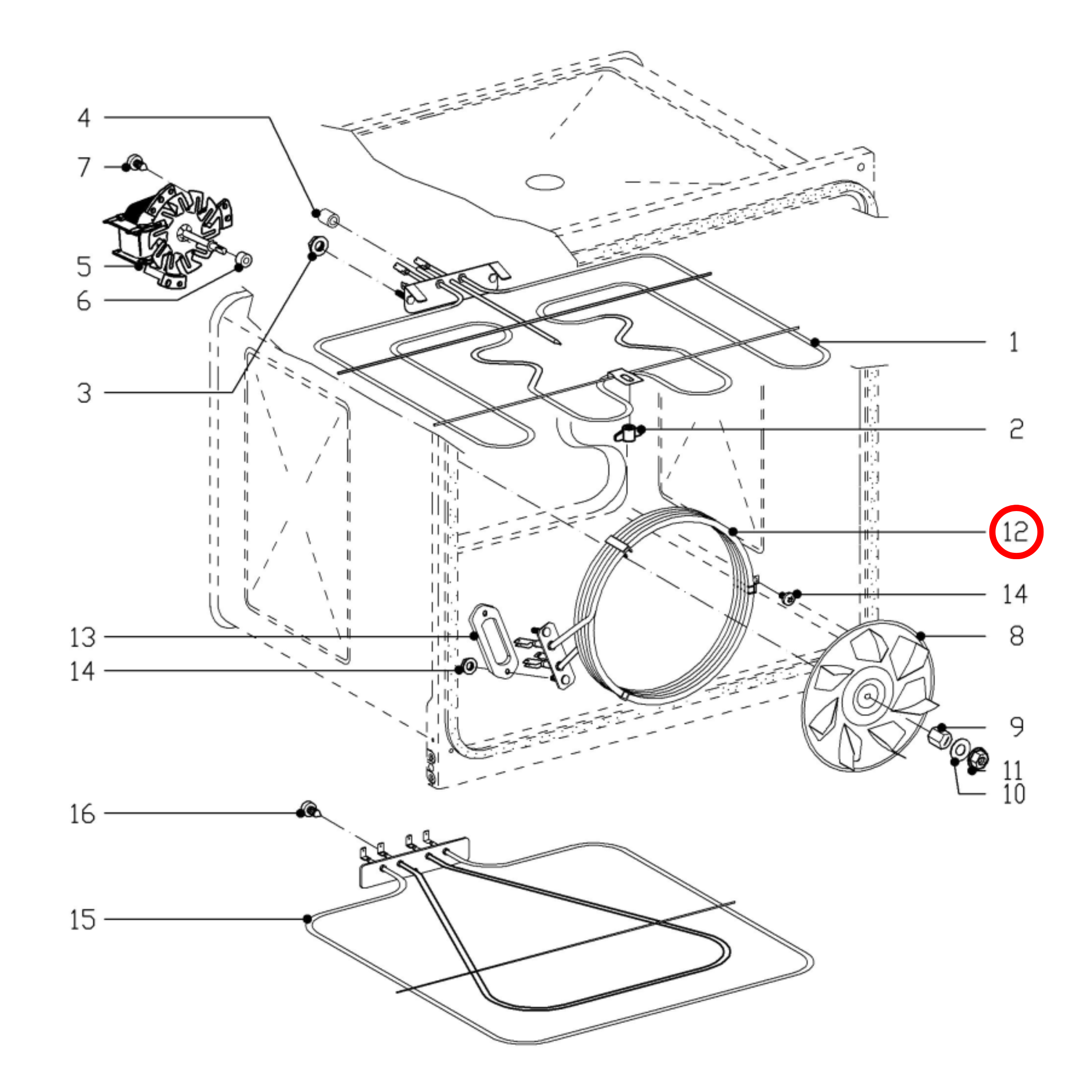

04986672 supersedes 4438721, 4986672, 4986671, 4986670, 4884292, 488429, 4884290 and is number 12 on the diagram. The diagram is from model H4240B.
The outside diameter is 190mm
The centre of the mounting bracket to the far edge of the element loop is 245mm
The bracket is 70mm and the holes are 55mm apart
Models this part suits:
H4240B, H3101E, H4020BM, and possibly more.
Give us a call on 0863907132 if you are not sure about this part.
