Description

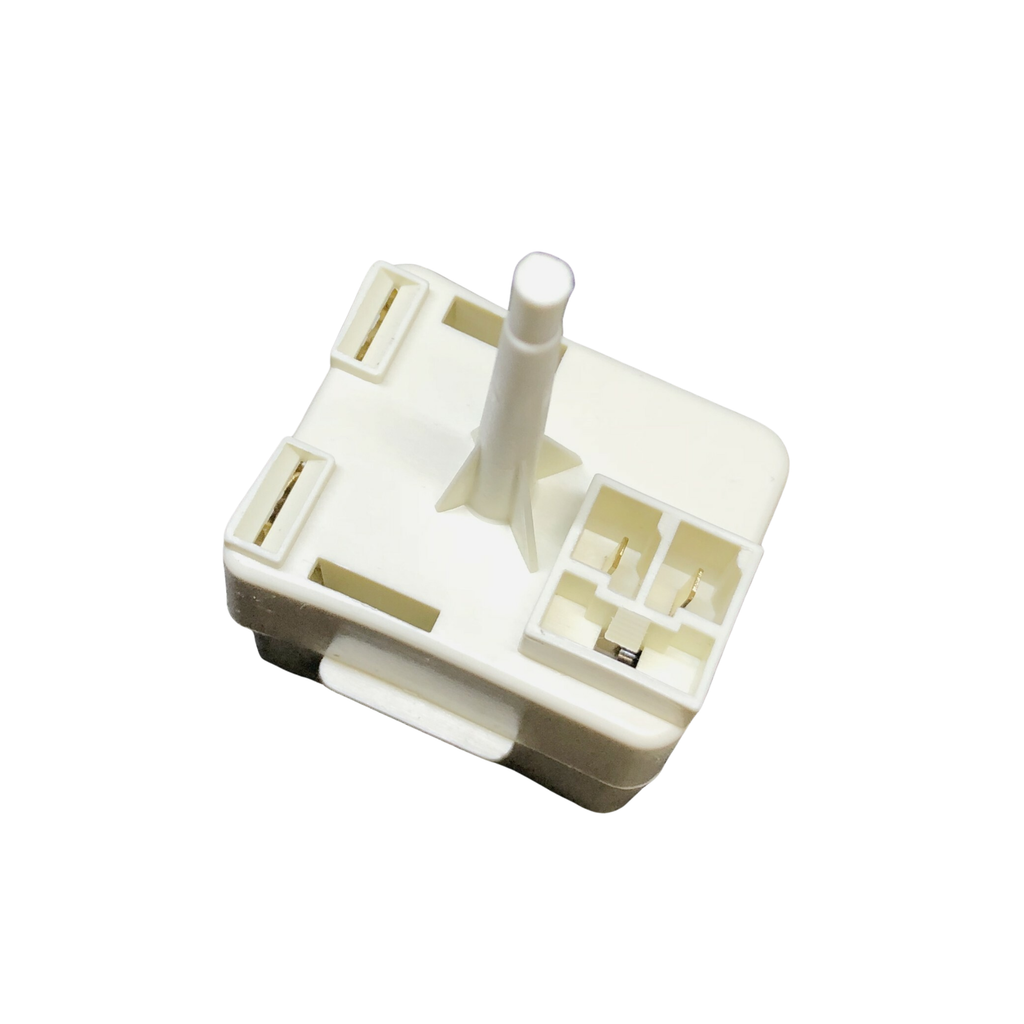

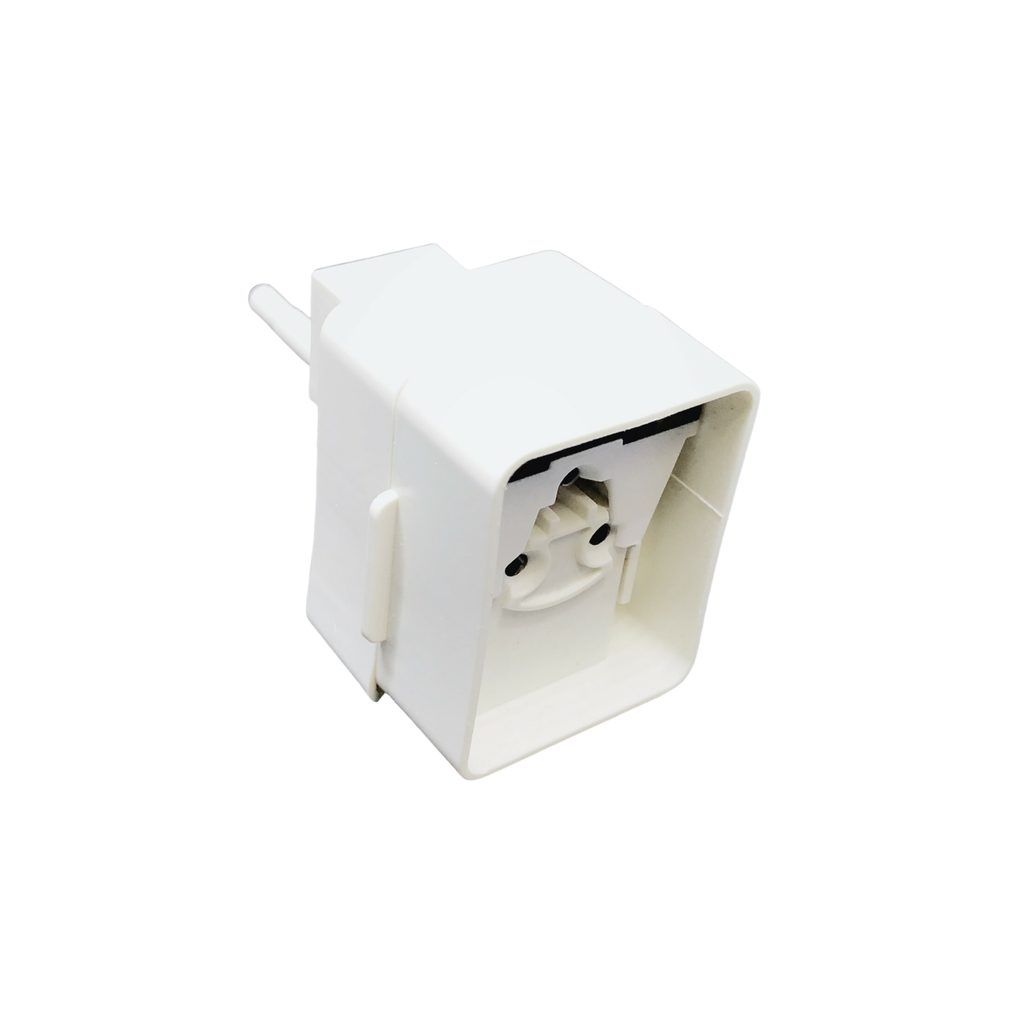

This is the genuine Kelvinator PTC starter relay for Kelvinator & Westinghouse fridges and freezers, listed under part number 2417077290. It supersedes or cross-references 241707729. As a manufacturer-supplied part it fits exactly as the original did, with no modification.
How this part works
A relay is an electrically operated switch that lets the control circuit of the fridge switch a heavy load such as a compressor or heater.
Common symptoms of a failed relay
- Clicking with no start, or no clicking at all
- The compressor or heater will not run
- The relay is scorched or rattles when shaken
Part details
| Part number | 2417077290 |
|---|---|
| Alternative numbers | 241707729 |
| Supersedes | 241707729 |
| Brand | Kelvinator & Westinghouse |
| Part type | Genuine manufacturer part |
| Appliance | Fridge |
| Category | Relay |

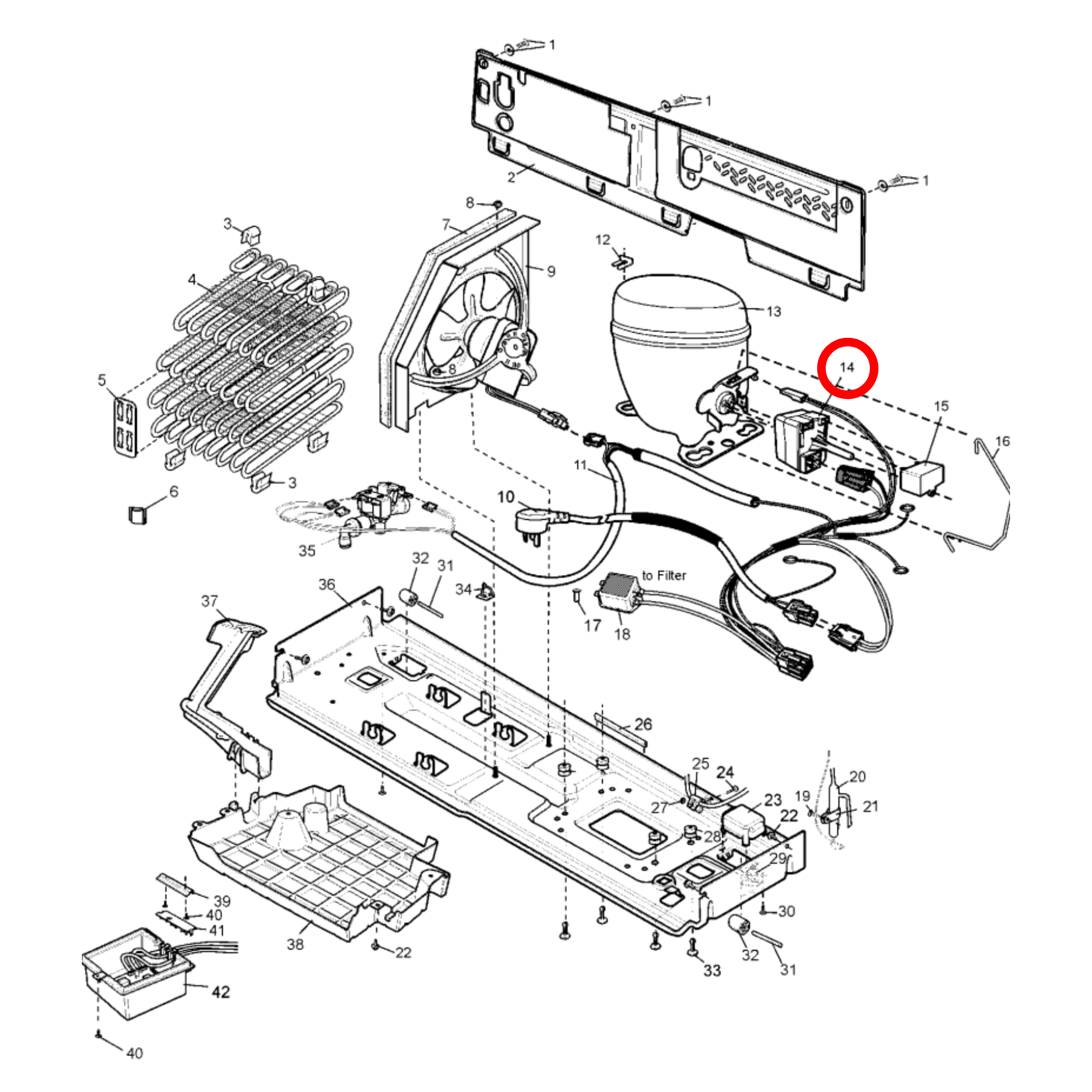

| Parts diagram reference | Item 14 (model WSE6100WF (925042658)) |
Fits these models
This PTC starter relay is listed for the following Kelvinator & Westinghouse models and other models in the same range:
KSM6100WF, KSM6100PF, WSE6070SF, WSE6070WF, WSE6100SF, WSE6100WF, WSE6100PF, WSE6970SF, WSE6970WF
Fitting and checking
Match the rating and the pin layout. Replace the overload protector at the same time where they are sold separately. The model number is on the rating plate, usually inside the door or on the back panel. Compare it with the model list before you buy. A parts diagram showing the item position is included with the product images.
Frequently asked questions
Is 2417077290 a genuine Kelvinator part?
Yes. This is the manufacturer's own part, not an aftermarket copy.
Which models does this PTC starter relay fit?
It fits KSM6100WF, KSM6100PF, WSE6070SF and 6 other models listed above. Always confirm your model number first.
What part numbers does 2417077290 replace?
2417077290 can be used in place of 241707729.
Do I need a technician to fit this part?
Many parts can be fitted by a competent DIYer with the power disconnected. Gas, refrigeration and sealed-system work must be done by a licensed tradesperson.
