Description

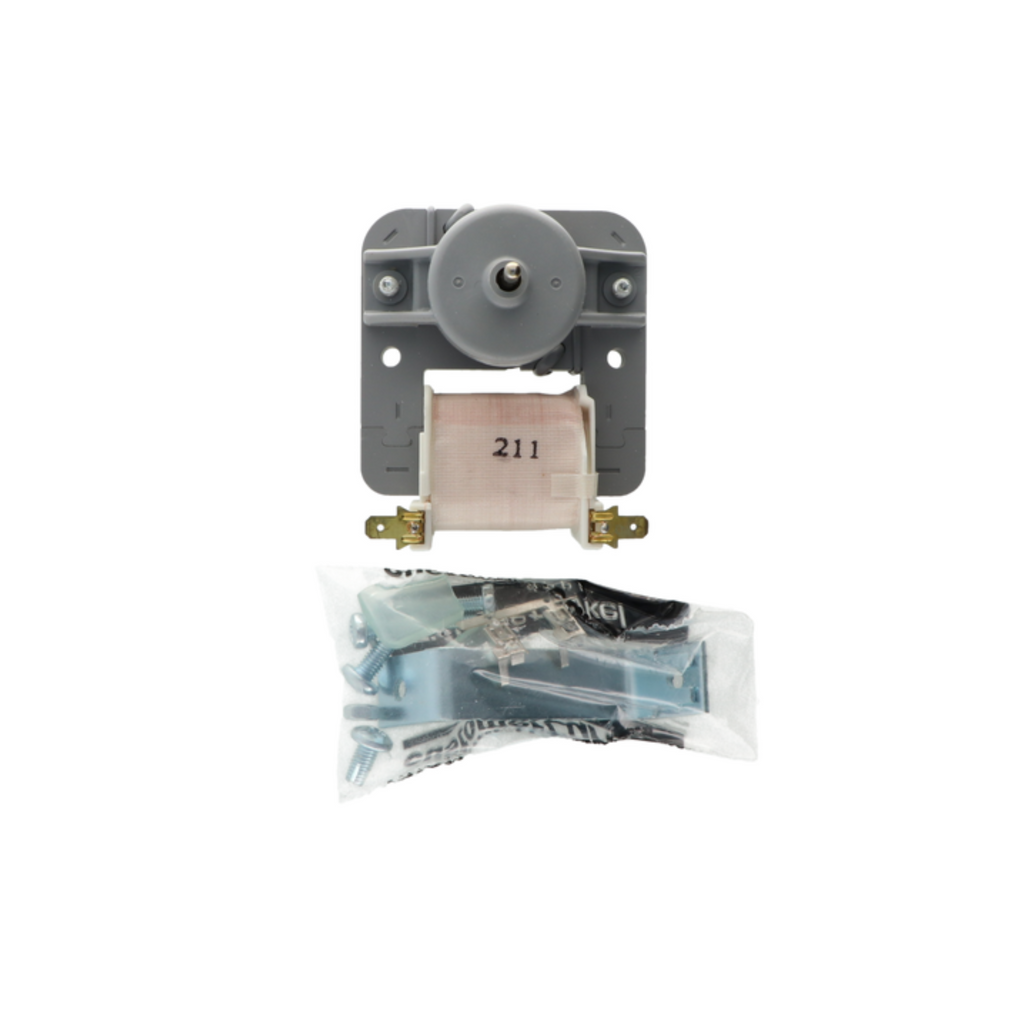

Genuine Fisher & Paykel evaporator fan motor kit, part number 315040P, supplied for Fisher & Paykel fridges and freezers. Earlier and alternative numbers for this part: 814438. Because it is made or supplied by Fisher & Paykel, it matches the original fit, finish and specification.
How this part works
The motor drives the drum, fan, pump or turntable of the fridge. It is one of the hardest working parts of the appliance.
Common symptoms of a failed motor
- A humming noise but no movement
- Burning smell, excessive heat or sparking
- Slow or jerky operation, or the appliance stopping under load
Part details
| Part number | 315040P |
|---|---|
| Alternative numbers | 814438 |
| Supersedes | 814438 |
| Brand | Fisher & Paykel |
| Part type | Genuine manufacturer part |
| Appliance | Fridge |
| Category | Motor |

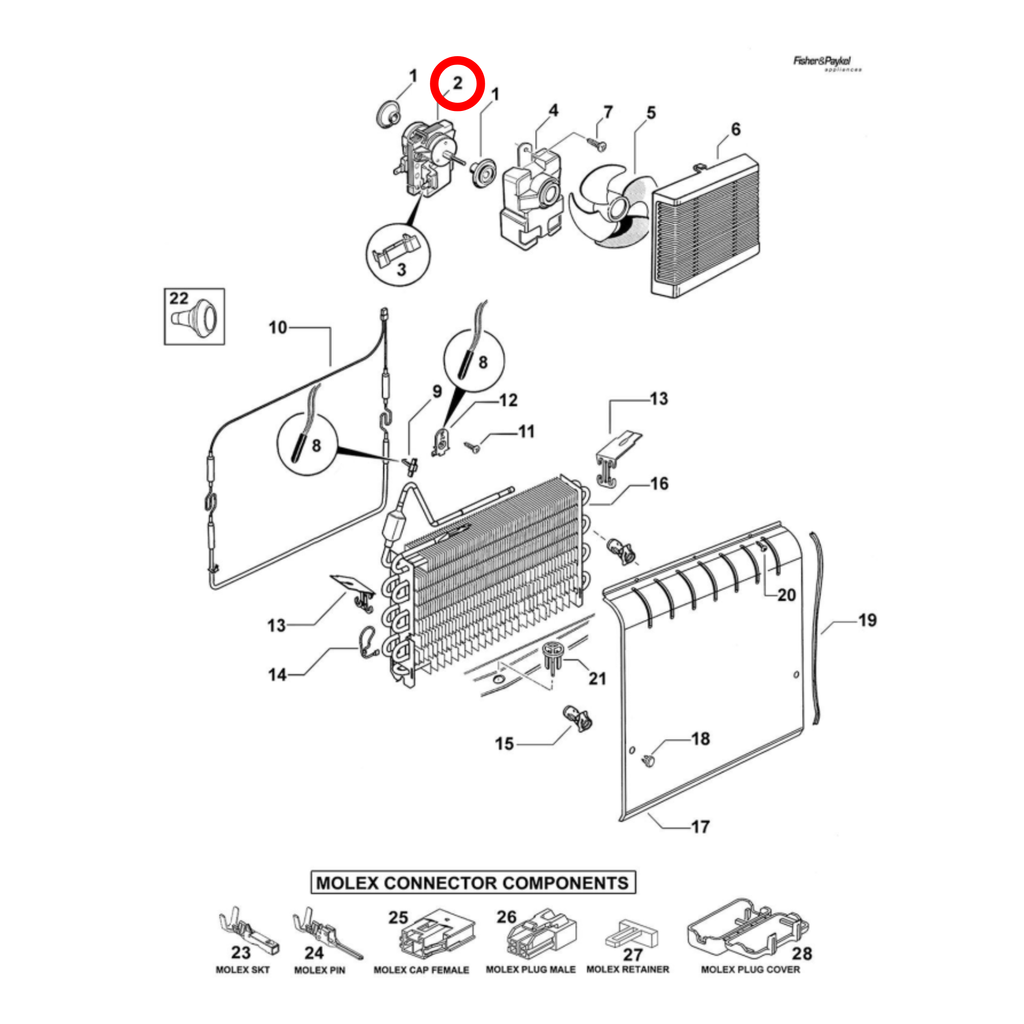

| Parts diagram reference | Item 2 (model E388 (23961-A)) |
Fits these models
This evaporator fan motor kit is listed for the following Fisher & Paykel models and other models in the same range:
E308L, E308LW1, E308R, E308RW1, E388L, E388LMFD, E388LXFD1, E388LXFD, E388RMFD, E388RW1, RF308FLDW1, RF308FLDW2, RF308FRDW1, RF308FRDW2, RF388LXFD2, RF388RXFD2, E388RXFD1, E388RXFD, N210L, N388LMFD, N388LXFD, N388RMFD, N500B, E210L
Installation notes
Check the mounting pattern, shaft size and electrical rating against the original. Replace worn brushes, belts or bearings at the same time if they are separate parts. Check the part number printed on the part you are replacing against the numbers listed here; where it differs, compare your model number instead. The exploded parts diagram is included in the product photos so you can confirm the item number.
Frequently asked questions
Is 315040P a genuine Fisher & Paykel part?
Yes. This is the manufacturer's own part, not an aftermarket copy.
Which models does this evaporator fan motor kit fit?
It fits E308L, E308LW1, E308R and 21 other models listed above. Always confirm your model number first.
What part numbers does 315040P replace?
315040P can be used in place of 814438.
Do I need a technician to fit this part?
Many parts can be fitted by a competent DIYer with the power disconnected. Gas, refrigeration and sealed-system work must be done by a licensed tradesperson.
