Description

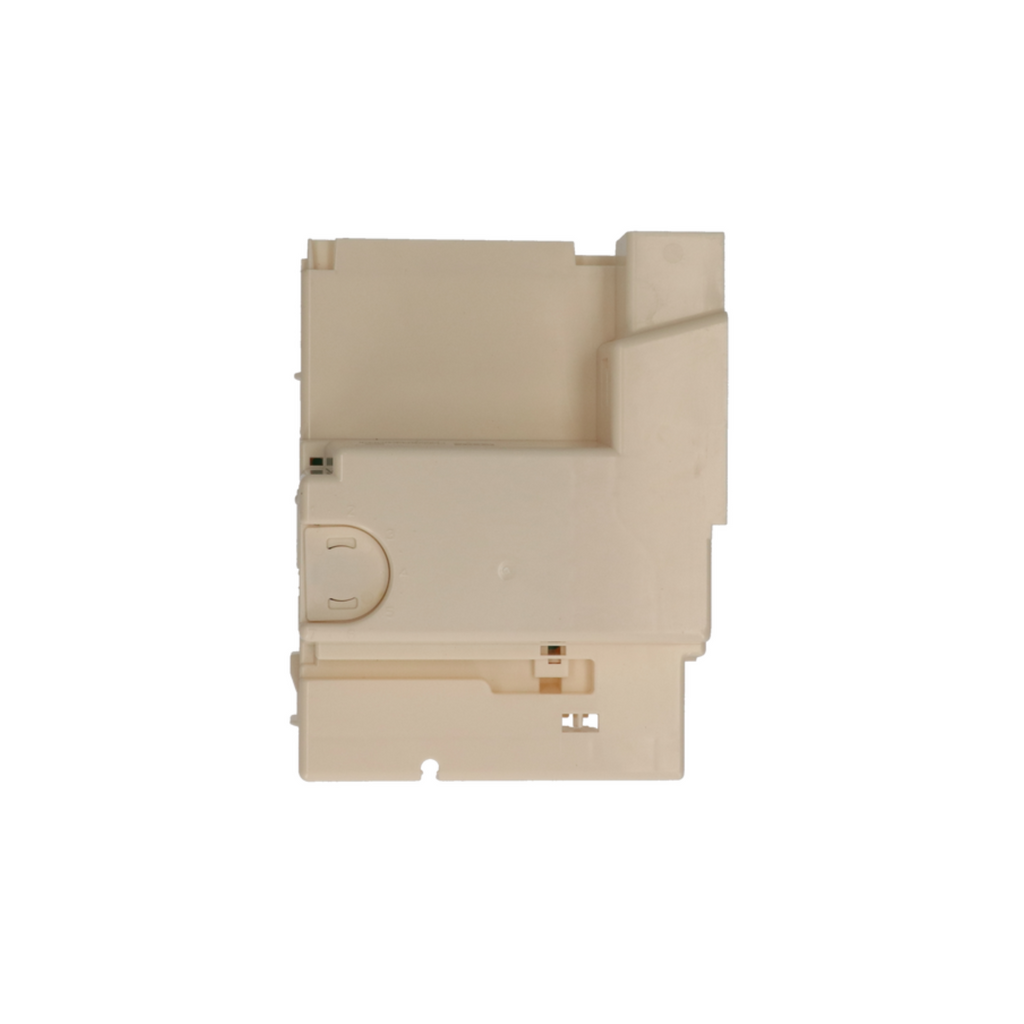

This is the genuine Fisher & Paykel PCB board for Fisher & Paykel fridges and freezers, listed under part number 847189P. The same part is also catalogued as 845539P and 814795P. As a manufacturer-supplied part it fits exactly as the original did, with no modification.
What this part does
The PCB (printed circuit board) is the control brain of the fridge. It reads the sensors, runs the program and switches the motor, heater, valves and pump on and off.
When to replace it
- No power, no lights or a display that stays blank
- Error codes that return after a reset
- A cycle that stops part way through, or functions that will not switch on
Specifications and fitment
| Part number | 847189P |
|---|---|
| Alternative numbers | 845539P, 814795P |
| Supersedes | 845539P, 814795P |
| Brand | Fisher & Paykel |
| Part type | Genuine manufacturer part |
| Appliance | Fridge |
| Category | PCB |

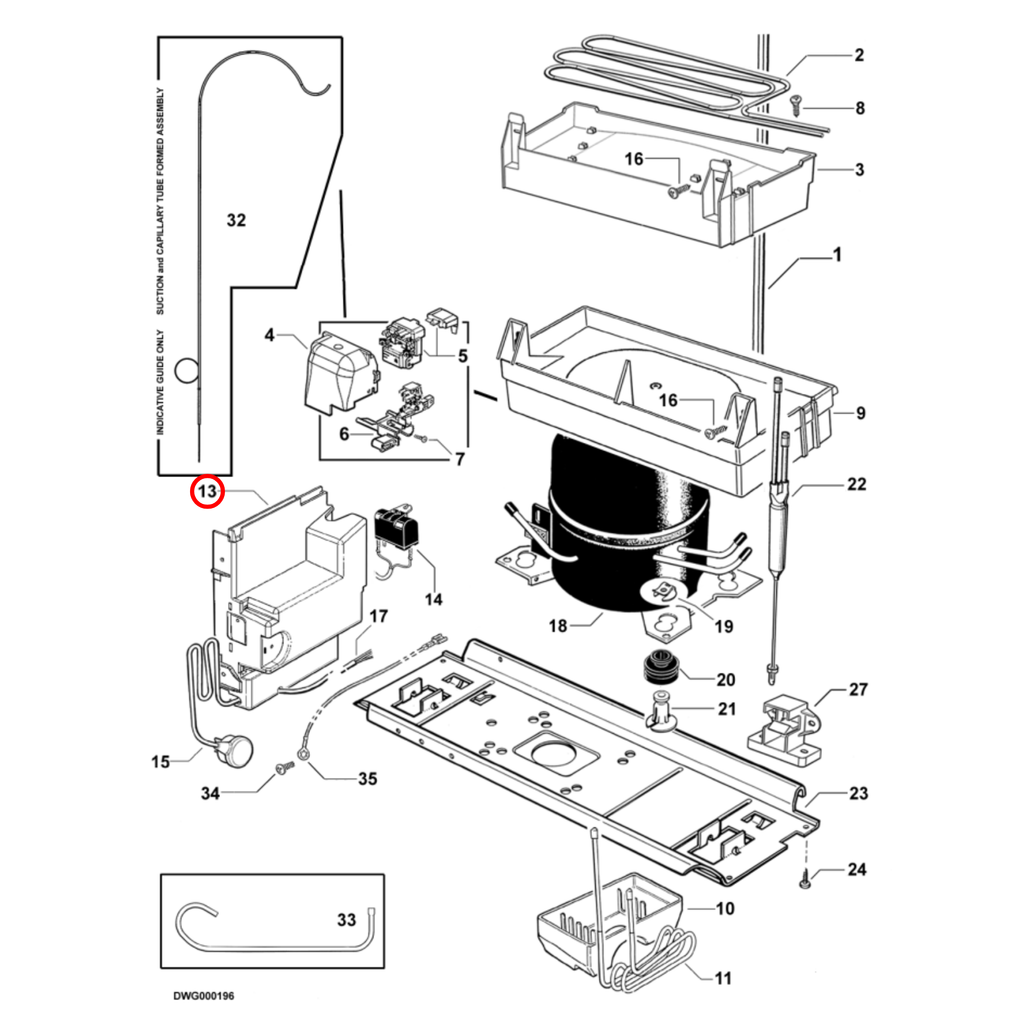

| Parts diagram reference | Item 13 (model E450L (22101-A)) |
Suitable for
This PCB board is listed for the following Fisher & Paykel models and other models in the same range:
E450L, E450LMFD, E450LW1, E450LXFD1, E450LXFD, E169TL, E169TR, E240BL, E450R, E450RMFD, E240BR, E249TL, E249TR, E373L, E450RSFD1, E450RW1, E450RXFD1, E450RXFD, RF373SLDW1, RF373SRDW1, RF450SLDW1, RF450SRDW1, E373LW1, E373R, E373RW1
Before you order
Disconnect power and note where every plug goes before removing the old board. Many boards are supplied unprogrammed or need settings transferred, so check the notes below. Match the part number on your old part, or the model number on your appliance's rating plate, to the details above before ordering. The exploded parts diagram is included in the product photos so you can confirm the item number.
Frequently asked questions
Is 847189P a genuine Fisher & Paykel part?
Yes. This is the manufacturer's own part, not an aftermarket copy.
Which models does this PCB board fit?
It fits E450L, E450LMFD, E450LW1 and 22 other models listed above. Always confirm your model number first.
What part numbers does 847189P replace?
847189P can be used in place of 845539P and 814795P.
Do I need a technician to fit this part?
Many parts can be fitted by a competent DIYer with the power disconnected. Gas, refrigeration and sealed-system work must be done by a licensed tradesperson.
