Description

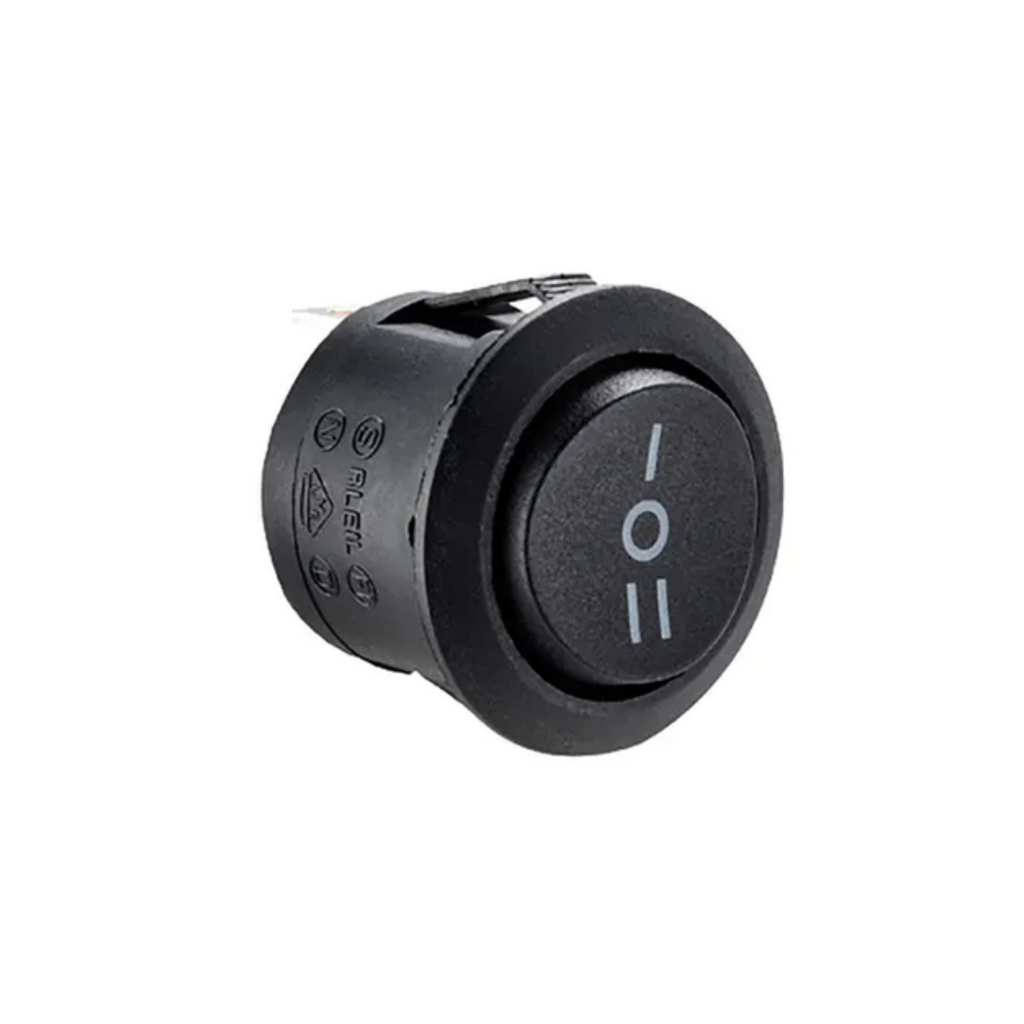

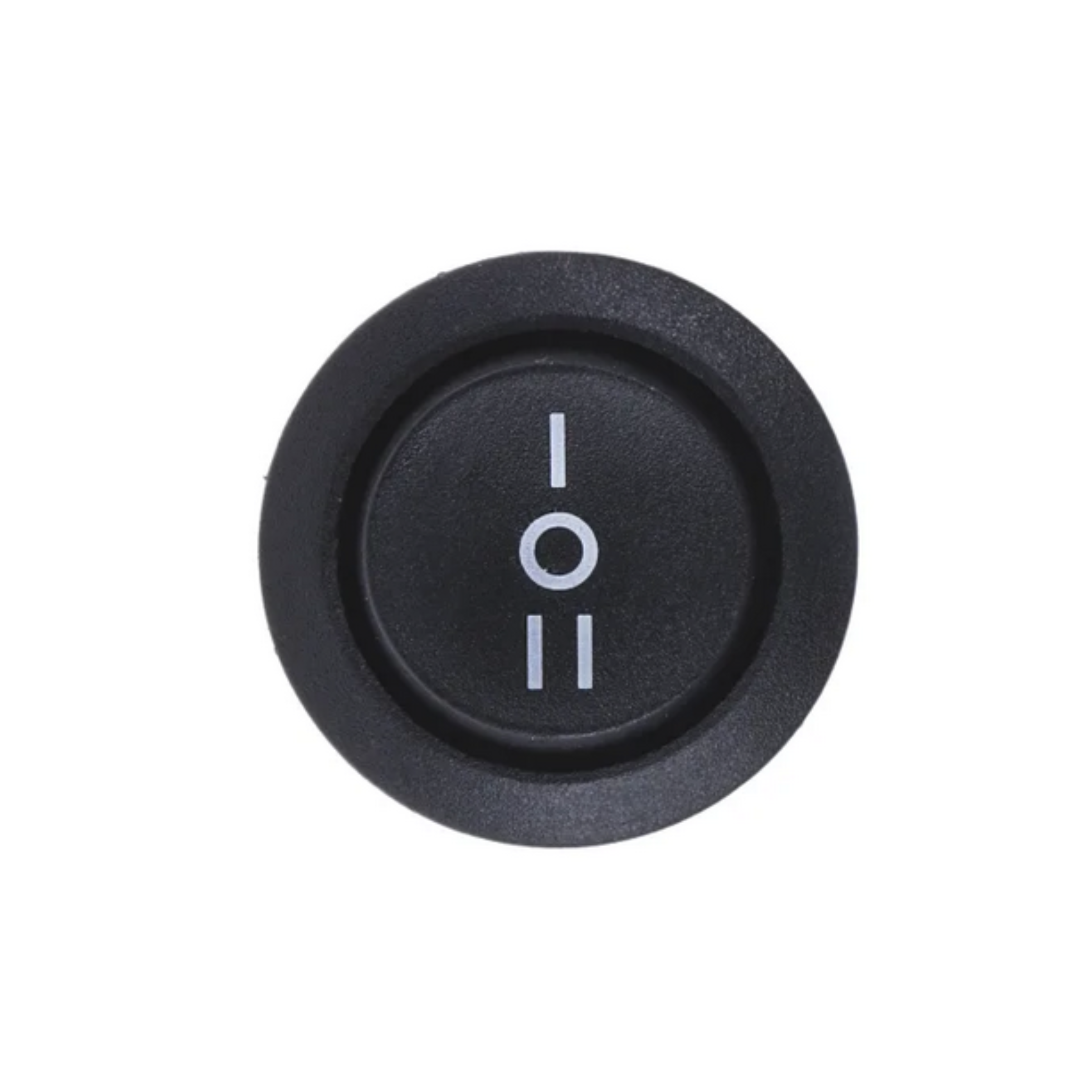

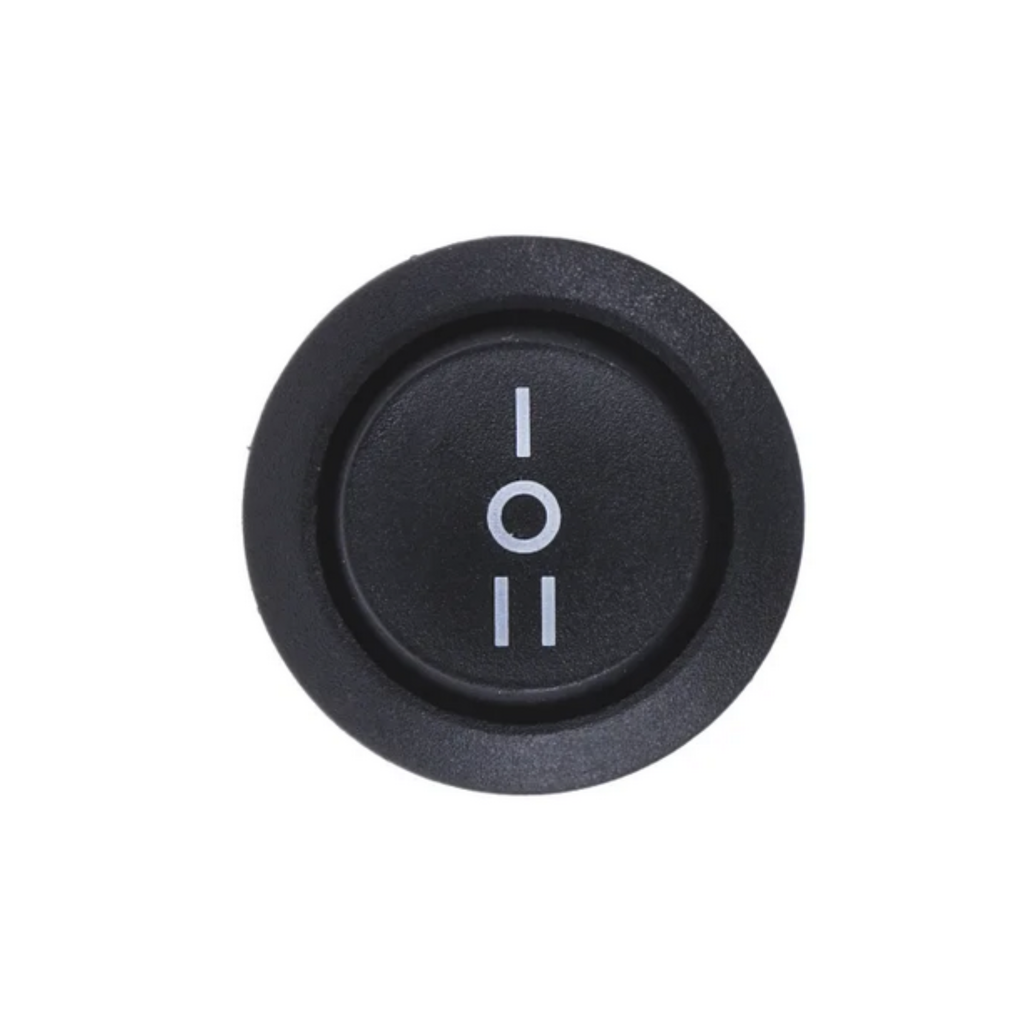

Part number 9143550: on-off-on rocker switch panel mount.
What this part does
Switches control power, programs and safety functions on the appliance. Contacts wear and burn with every operation.
When to replace it
- A function that will not switch on or off
- A switch that feels loose, sticks or clicks without effect
- Scorching or melting around the switch
Specifications and fitment
| Part number | 9143550 |
|---|---|
| Brand | Universal / unbranded |
| Part type | Aftermarket replacement part |
| Category | Switch |
Good to know
Complete a new design or replace an existing panel with the RS PRO single pole double throw (SPDT), on-off-on rocker switch panel mount. It's used across a range of domestic and commercial applications, from vacuum cleaners to central heating and HVAC (heating, ventilation and air conditioning) systems.
This switch features a latching centre-switching action. This means it's switched off by the user and then remains off until it's switched on again. It has a single pole double throw functionality, so it has a single input and can connect to and switch between two outputs.
Like all of our RS PRO branded products, it's been tested to ensure it's durable and reliable. The switch has an electrical lifespan of roughly 10,000 cycles. It's capable of operating in extreme temperatures, ranging from -25°C to +125°C and is RoHS compliant for minimal hazardous materials.
This switch features a latching centre-switching action. This means it's switched off by the user and then remains off until it's switched on again. It has a single pole double throw functionality, so it has a single input and can connect to and switch between two outputs.
Like all of our RS PRO branded products, it's been tested to ensure it's durable and reliable. The switch has an electrical lifespan of roughly 10,000 cycles. It's capable of operating in extreme temperatures, ranging from -25°C to +125°C and is RoHS compliant for minimal hazardous materials.
Features and Benefits
• Single pole double throw (SPDT) contact configuration
• Round On-Off-On rocker switch
• Panel cutout dimensions of (W) 20.8 mm, x (H) 20.6 mm
• Panel cutout diameter of 20 mm
• Contact current rating of 10 A
• Non-illuminated
• Black actuator
• Panel mounted

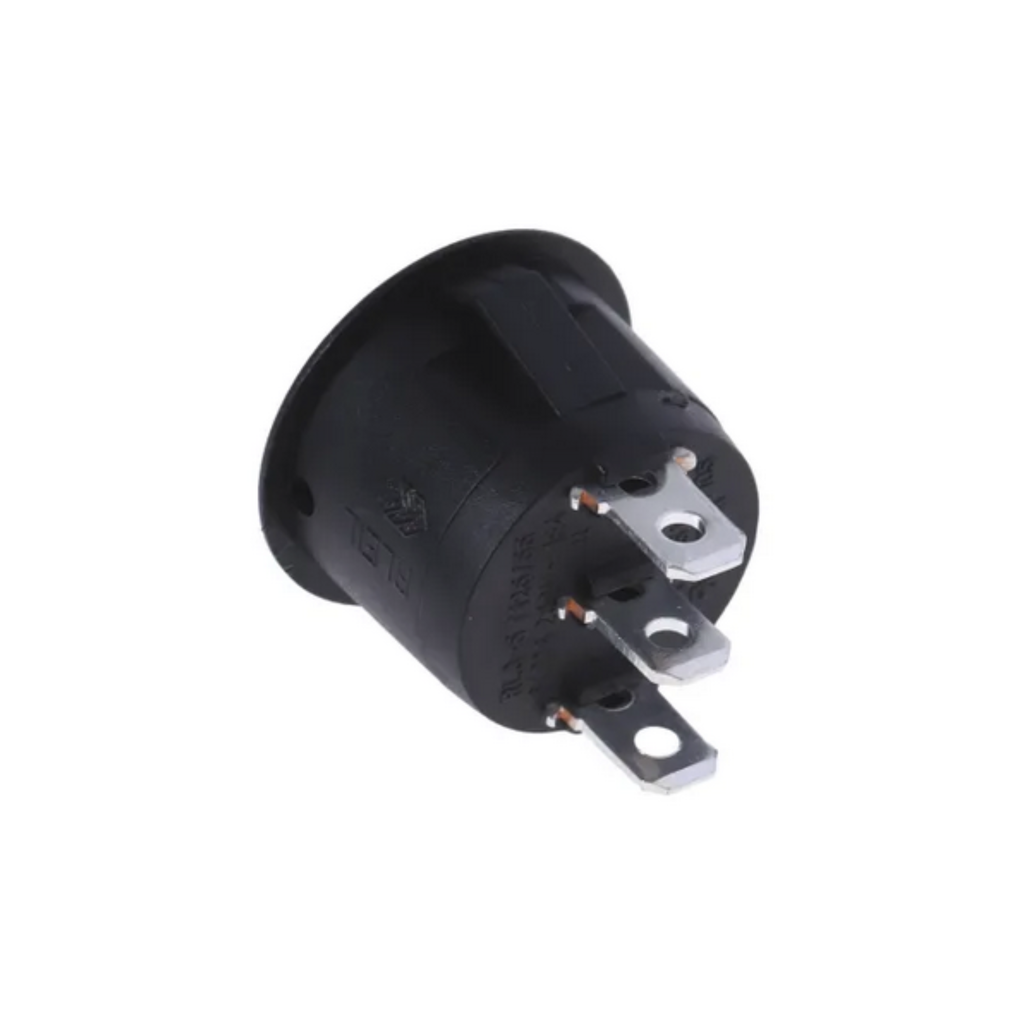

• Quick connect terminal
• Round actuator
• Silver alloy contacts
• AC voltage rating of 125 V, 250 V
• Operates temperature range of -25°C to +125°C
• Nylon casing
• Contact resistance of 30 mΩ
• Mechanical life of 10,000 cycles
• RoHS compliant for minimal hazardous materials
• Round On-Off-On rocker switch
• Panel cutout dimensions of (W) 20.8 mm, x (H) 20.6 mm
• Panel cutout diameter of 20 mm
• Contact current rating of 10 A
• Non-illuminated
• Black actuator
• Panel mounted
• Quick connect terminal
• Round actuator
• Silver alloy contacts
• AC voltage rating of 125 V, 250 V
• Operates temperature range of -25°C to +125°C
• Nylon casing
• Contact resistance of 30 mΩ
• Mechanical life of 10,000 cycles
• RoHS compliant for minimal hazardous materials
Installation notes
Note the terminal positions before removing the old switch and connect the new one the same way. Match the part number on your old part, or the model number on your appliance's rating plate, to the details above before ordering.
Frequently asked questions
What if I am not sure this is the right part?
Compare the part number on your old part with the numbers listed above. If they differ, check your model number against the model list.
