Description

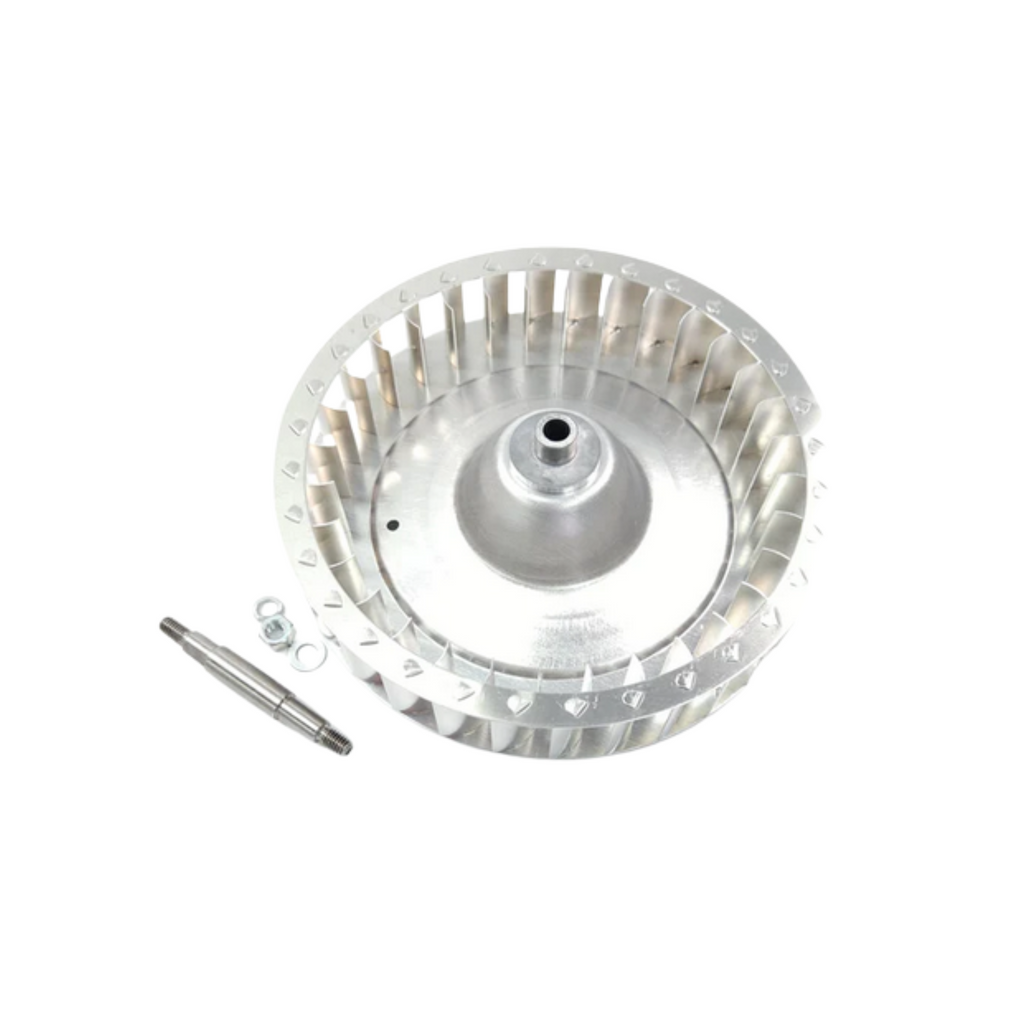

Genuine Fisher & Paykel fan & shaft, part number H0180800230, supplied for Fisher & Paykel dryers. Because it is made or supplied by Fisher & Paykel, it matches the original fit, finish and specification.
How this part works
The fan moves air around the dryer to keep temperature even, to cool components or to dry a load. Bearings and blades wear over time.
When to replace it
- Uneven heating, cooling or drying
- A rattling, scraping or grinding noise
- The fan does not spin, or spins slowly
Key details
| Part number | H0180800230 |
|---|---|
| Brand | Fisher & Paykel |
| Part type | Genuine manufacturer part |
| Appliance | Dryer |
| Category | Fan |

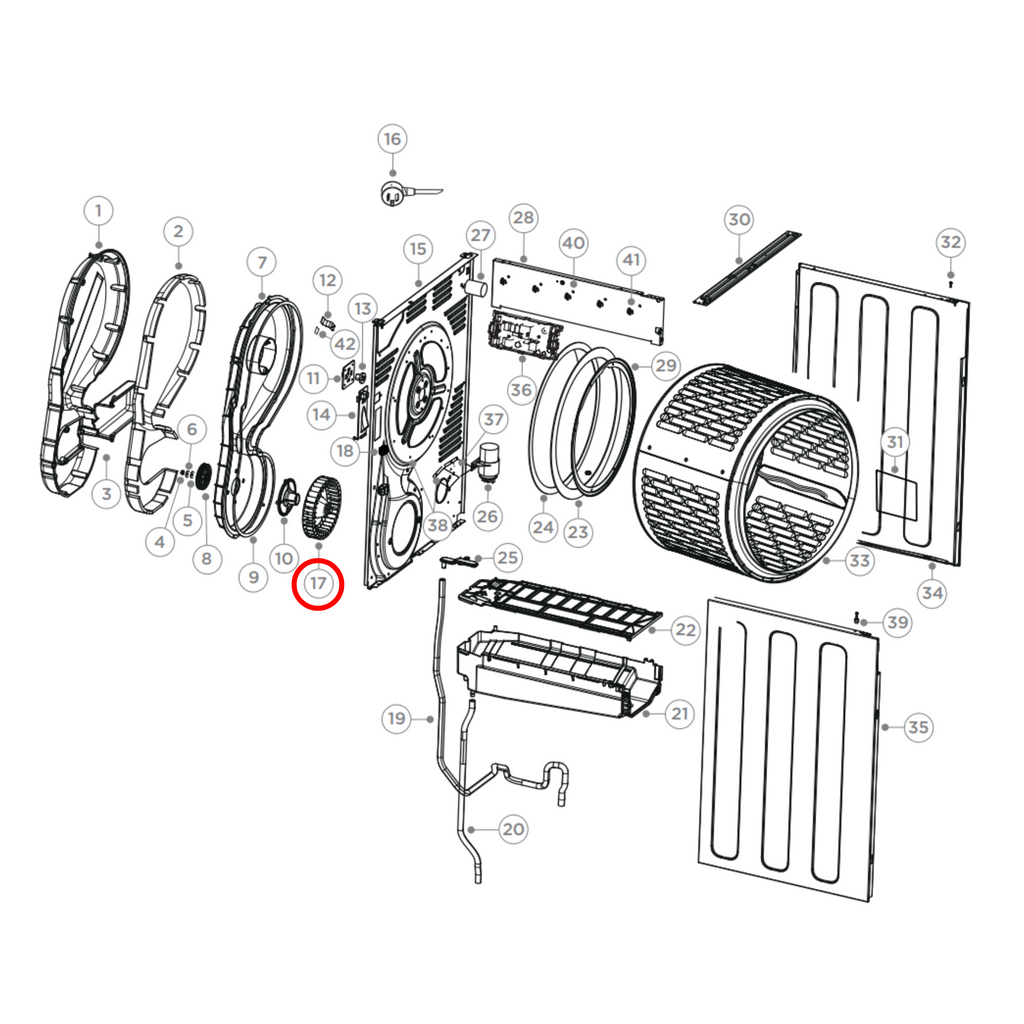

| Parts diagram reference | Item 17 (model DH9060P1 DH8060P1 (92273-A)) |
Fits these models
Use this part on these Fisher & Paykel dryers:
DH8060P1, DH9060PG2, DH8060C1, DH9060C1, DH9060P1, DH9060P2, HDHP80E1
Installation notes
Check the blade diameter, shaft size and rotation direction. Fan motors and blades are often separate parts. Check the part number printed on the part you are replacing against the numbers listed here; where it differs, compare your model number instead. A parts diagram showing the item position is included with the product images.
Frequently asked questions
Is H0180800230 a genuine Fisher & Paykel part?
Yes. This is the manufacturer's own part, not an aftermarket copy.
Which models does this fan & shaft fit?
It fits DH8060P1, DH9060PG2, DH8060C1 and 4 other models listed above. Always confirm your model number first.
Do I need a technician to fit this part?
Many parts can be fitted by a competent DIYer with the power disconnected. Gas, refrigeration and sealed-system work must be done by a licensed tradesperson.
